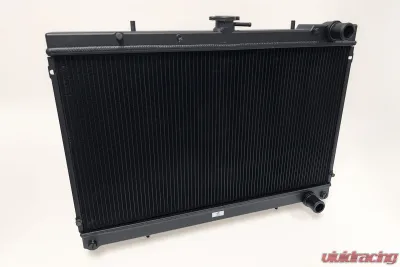

CSF Radiators R32 Skyline GT-R/GTS Full Billet Aluminum Radiator - Black, 1989-1994 - 7217B
CSF Radiators R32 Skyline GT-R/GTS Full Billet Aluminum Radiator - Black, 1989-1994 - 7217B - Image 6 CSF Radiators R32 Skyline GT-R/GTS Full Billet Aluminum Radiator - Black, 1989-1994 - 7217B - Image 2 CSF Radiators R32 Skyline GT-R/GTS Full Billet Aluminum Radiator - Black, 1989-1994 - 7217B - Image 3 CSF Radiators R32 Skyline GT-R/GTS Full Billet Aluminum Radiator - Black, 1989-1994 - 7217B - Image 4 CSF Radiators R32 Skyline GT-R/GTS Full Billet Aluminum Radiator - Black, 1989-1994 - 7217B - Image 5 CSF Radiators R32 Skyline GT-R/GTS Full Billet Aluminum Radiator - Black, 1989-1994 - 7217B - Image 6

CSF Radiators 7217B: High-Performance Radiator for Nissan R32 Skyline

The CSF 7217B Full Billet Aluminum High-Performance Radiator is engineered specifically for the Nissan R32 Skyline, covering model years 1989 to 1994. This radiator is designed to meet the cooling demands of both the RB20 and RB26 inline-six engines, providing optimal performance for enthusiasts looking to push their vehicles to the limit.

Construction and Design

Crafted from 100% CNC machined billet aluminum, the end tanks are TIG welded to a robust 2-row, 42mm core. This construction not only enhances durability but also ensures precision fitment and reliability. The satin black finish adds an aesthetic appeal while maintaining the integrity of the aluminum beneath.

Cooling Efficiency

Featuring CSF's Exclusive B-Tube Technology, the radiator boasts 75 cooling tubes that improve heat transfer by approximately 15% compared to standard oval welded tubes. The multi-louvered fins, standing at 6.5mm tall, maximize airflow and surface area contact, enhancing the radiator's ability to dissipate heat effectively.

Installation and Compatibility

The 7217B is designed for a true plug-and-play installation, requiring no modifications to fit into the OE mounting points. It utilizes the factory coolant hose connections, making it straightforward to integrate into your R32 Skyline without any additional hardware. Each unit comes with a 1.4 bar high-pressure radiator cap, designed to raise the coolant's boiling point and provide extra protection during high-performance driving.

Specifications

  • Core Height: 379.5mm
  • Core Width: 644.5mm
  • Core Thickness: 42mm
  • Core Material: Aluminum
  • Cooling Row Quantity: 2
  • Inlet Diameter: 35mm (Top Right)

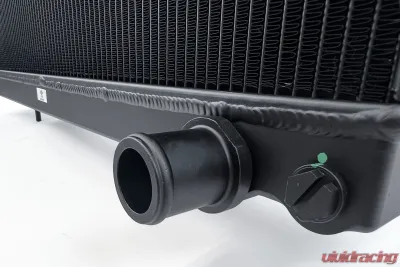

  • Outlet Diameter: 35mm (Bottom Right)
  • Installation Type: Drop-In Fit
  • Radiator Cap Included: Yes
  • Finish: Satin Black

Warranty and Quality Assurance

CSF stands behind their product with a 2-year limited warranty. Each radiator is individually leak and pressure tested to ensure performance and reliability under demanding conditions.

Other Part Numbers:
CSF Radiators #csf7217B

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

CSF Radiator

Anyone who needs a new radiator should consider buying a CSF radiator. A CSF radiator and CSF cooling system offers the best performance for driving and racing enthusiasts. If you have a faulty radiator or are looking to upgrade to a high-performance radiator, a CSF radiator will get the job done.

What is a CSF Radiator?

During the last 40 years, CSF has manufactured over 10,000 different models of radiators, oil coolers, heat exchangers and condensers for Automotive, Truck, Industrial and Marine applications. Today, their products are sold in over 60 countries throughout the world. Their US Aftermarket Division stocks over 1000 models that cover over 2100 applications for all popular Import vehicles.

CSF supplies radiators and condensers that are designed to meet or exceed original equipment (OE) engineering specifications. Their plants meet ISO 9000 standards and provide parts to OE manufacturers, and to top it all off - check out their industry leading warranty. Simply put, you cannot buy, sell, install or own a better value radiator or condenser.

Why Should I Buy a CSF Radiator?

A CSF radiator offers a number of benefits over the competition. Below, we explain the main reasons why you should buy a CSF radiator.

A Market Leader for over 45 Years

CSF has been a market leader for over 45 years, as the company was initially established in 1975 and have been selling CSF radiators ever since. Over time, a CSF radiator has become known for its innovative design and impeccable quality.

High-Quality Radiator Testing

Every single CSF radiator and CSF cooling system has been put through a rigorous series of tests to make sure every system is reliable and performs at a high level. In their testing lab, CSF puts in the time to make sure every product works perfectly.

Cutting-Edge Technology

Each CSF radiator uses cutting-edge technology to bring customers the best CSF full cooling system possible. CSF racing radiators combine a high-efficiency core, advanced endtank designs, and innovative design and engineering to give our customers the most advanced and efficient radiator possible.

Get a CSF Radiator or CSF Cooling System From Vivid Racing

Vivid Racing carries a wide selection of CSF radiator products, including CSF cooling systems and other accessories. If you are interested in learning more or would like to purchase a CSF radiator, please contact Vivid Racing today by calling (480) 966-3040.

CSF takes pride in the quality of its products and offers one of the best warranty’s in the industry. Please refer to the CSF warranty card in the shipping carton for details.

CSF warranty is applicable only to the original owner of the vehicle. Original paper work verifying the proof of purchase and pre-installation cooling system checklist signed by the professional installer is required to process warranty claims.

All warranty claims should be directed to the point of purchase. Due to CSF’s established agreements with Authorized CSF Warehouse Distributors, CSF is unable to handle and/or process warranty related calls/inquires from any individuals – all inquires/warranty related claims should be directed to the point of purchase or an authorized warehouse distributor.

Take care of your radiator, as under circumstances listed below the warranty will be void.

If the radiator is installed and is returned deformed (bulging tanks, warped core etc.), this is an indication that the radiator is the victim of some other problem and not the cause. The deformation is a result of the radiator being subjected to extremely high pressure and or temperature caused by any of the following reasons:Defective Pressure Cap, Defective Head Gasket, Defective Temperature gauge (incorrect readings), Defective Water Pump etc. Such units are not covered under the warranty.

If a radiator seems to have a “fit problem” there is the possibility that there is some confusion about a multi-fit radiator that might look different. Your nearest CSF WD can clarify the application, just give them a call. A perceived fit problem is not covered under warranty.

If a unit is damaged in shipping, please file a claim with the carrier. Damages caused during shipping, installation or handling are not covered under warranty.

Any repairs or alterations to the unit will automatically void the warranty.

Any form of abuse, including the use of improper coolant mixtures, damage caused by steam, corrosion etc and use on commercial vehicles voids the warranty. It is the vehicle owners’ responsibility to maintain the cooling system as specified in the owners manual.
