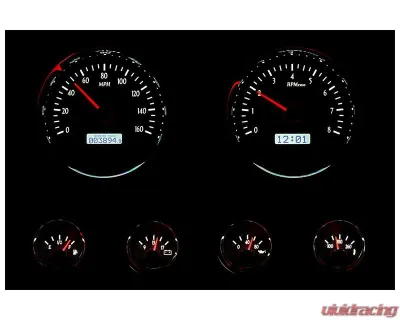

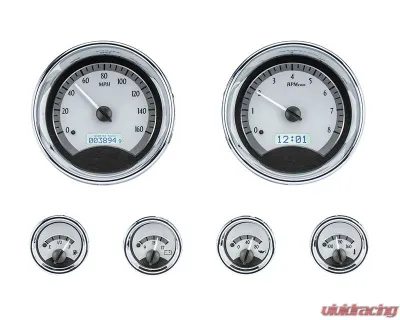

Dakota Digital MHX-1024-S-W Instrumentation System

If you're looking to upgrade the instrumentation in your classic vehicle, the Dakota Digital MHX-1024-S-W is a standout choice that perfectly balances style and functionality. Designed for a variety of applications, including popular models like the 1967-1972 Chevrolet C10 and other classic trucks, this gauge set not only enhances your dashboard aesthetics but also provides precise readings for all your essential metrics.

Distinctive Design

The MHX-1024 features a larger speedometer measuring 5.4" overall (5" cutout) complemented by four smaller gauges at 2.3" (2.05" cutout). Each gauge is housed in a sleek, chromed billet aluminum casing that adds a touch of modern flair to any classic interior.

Advanced Features

• Fully Lit Needles & Backlit Faces: Visibility is key when you're on the road. The MHX Series boasts fully lit needles and backlit faces, ensuring you can read your gauges at a glance, day or night.
• Precision Performance: Equipped with micro-controlled precision stepper motors and solid-state sensors, you can expect unparalleled accuracy across all metrics.
• User-Customizable Displays: Tailor your experience with customizable display feedback, putting you in control of how you monitor your vehicle's performance.
• Lifetime Warranty: Dakota Digital stands behind their products with a limited lifetime warranty, ensuring your investment is protected.

Specifications

Analog Gauges

• Speedometer: 0 - 160 MPH (optional metric version 0-255 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (optional metric version 40-120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

Digital Message Centers

• Standard Displays:
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0-9,999.9)
  • Clock (12 hour)
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 Mile Time
  • 1/4 Mile End Speed (Trap Speed)
  • High-Speed Recall
  • High RPM Recall

Included Sensors

• Water Temperature Sensor: 1/8" NPT, ground-isolated sensor with a 10 ft harness.
• Oil Pressure Sensor: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces GM-style speedometer cables with a 10 ft harness.
• Bushings: Includes various NPT bushings for easy installation.

Calibration Made Easy

Programming your Dakota Digital instruments is a breeze with the included pushbuttons. These allow you to easily calibrate your speedometer, set cylinder counts, and access a wealth of information from the Digital Message Centers.

Customer Feedback

Owners of classic Chevy trucks have raved about the MHX-1024-S-W, with one user stating, "Installed this on my 1971 C10, and it fits perfectly! The visibility is fantastic, even in bright sunlight, and I love the modern look it brings to my interior." Another satisfied customer noted the ease of installation and how it transformed their driving experience.

Upgrade your classic vehicle's instrumentation with the Dakota Digital MHX-1024-S-W. Experience the perfect blend of modern technology and classic styling, designed specifically for your beloved ride.
