Dakota Digital 5-Piece Round Silver Alloy MHX System Metric Custom Build MHX-1050-S-R - MHX-1050-S-R
Dakota Digital 5-Piece Round Silver Alloy MHX System Metric Custom Build MHX-1050-S-R - MHX-1050-S-R - Image 3 Dakota Digital 5-Piece Round Silver Alloy MHX System Metric Custom Build MHX-1050-S-R - MHX-1050-S-R - Image 2 Dakota Digital 5-Piece Round Silver Alloy MHX System Metric Custom Build MHX-1050-S-R - MHX-1050-S-R - Image 3

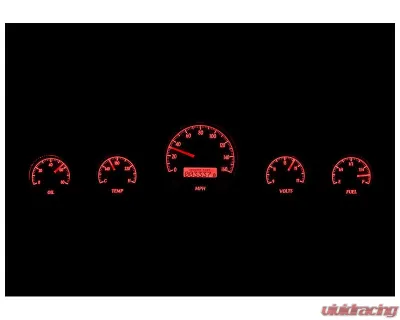

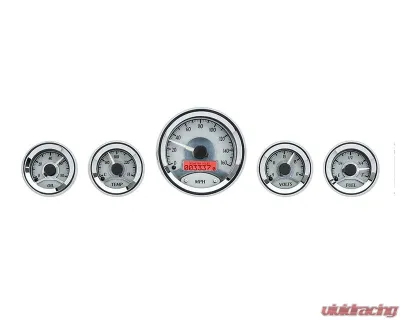

Dakota Digital MHX Gauge Kits

If you're on the hunt for a solid set of gauges that blend classic looks with modern tech, the Dakota Digital MHX kits are worth a peek. These kits come in two flavors: the MHX-1050 with five gauges and the MHX-1060 packing six. Each kit is designed to give you all the vital stats you need while cruising or tearing up the track.

MHX-1050: 5 Gauge Round Kit

  • Speedometer (with digital Tachometer)
  • Oil Pressure
  • Water Temperature
  • Fuel Level
  • Volts

MHX-1060: 6 Gauge Round Kit

  • Speedometer
  • Tachometer
  • Oil Pressure
  • Water Temperature
  • Fuel Level
  • Volts

Dimensions

  • Speedometer and Tachometer: Cutout 3-3/8" (3.55" OD)
  • Oil Pressure, Water Temperature, Fuel Level, Volts: Cutout 2-1/16" (2.225" OD)

Note: You can't buy these gauges individually, so you'll want to pick the kit that suits your needs right off the bat.

Specifications

Analog Gauges

  • Speedometer: 0 - 160 MPH (metric version available, 0-255 km/h)
  • Tachometer: 0-8,000 RPM
  • Oil Pressure: 0-80 psi
  • Water Temperature: 100-260°F (optional metric version 40-120°C)
  • Fuel Level: E, 1/4, 1/2, 3/4, F
  • Voltmeter: 9-17 VDC
  • Lighting: Each gauge is backlit with LEDs, making it easy to read everything at a glance, day or night.

Digital Message Centers

  • Standard Displays:
    • Odometer (settable, million-mile capability)
    • Dual Trip Meter (0-9,999.9)
    • Clock (12-hour format)
  • Performance Meters:
    • 0-60 MPH Timer
    • 1/4 mile time and end speed
    • High-speed and RPM recall
  • Gauges:
    • Speedometer (0-255 MPH/km/h)
    • Tachometer (0-9,900 RPM)
    • Oil Pressure (0-100 psi)
    • Water Temperature (100-300°F/40-150°C)
    • Voltmeter (9-17 VDC)
    • Fuel Level (0-99% full)
  • Lighting:
    • Auto-contrasting LCD for bright sunlight
    • LED backlighting for nighttime visibility

Built-in Indicators

  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control
  • Gear Position (requires optional sensor)
  • 4x4 Indicator (when equipped)
  • Wait to Start (when equipped)

Included Sensors

  • Water Temperature: 1/8" NPT sensor with a 10 ft harness
  • Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness
  • Cable Driven Speed Sensor/Generator: Replaces GM-style cables, needs about 5" clearance
  • Bushings: Comes with various NPT bushings for easy installation
  • Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

Setting this up is a breeze. You get a couple of push buttons to mount wherever's convenient. These let you calibrate your speedometer, set the cylinder count, and adjust the fuel gauge. Once you’ve got everything dialed in, you can easily access all the info from the Digital Message Centers.

Overall, the Dakota Digital MHX kits are a solid choice for anyone looking to upgrade their gauge setup with something that looks good and delivers the data you need without fuss.

Other Part Numbers:
Dakota Digital #DAK-MHX1050S

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Dakota Digital: Pioneers in Automotive Instrumentation

Established in 1986, Dakota Digital has been at the forefront of the automotive aftermarket, specializing in high-quality digital instrumentation and accessories. With a commitment to innovation and excellence, Dakota Digital has carved a niche for itself, becoming a trusted name among car enthusiasts and professionals alike.

History of Dakota Digital

From its humble beginnings, Dakota Digital emerged as a leader in the automotive industry by combining advanced technology with classic design. Their passion for performance and precision has driven them to continuously improve and expand their product offerings. Over the years, Dakota Digital has developed a reputation for creating some of the most reliable and stylish gauges available, catering to a wide range of vehicles from classic cars to modern muscle.

Categories of Parts Offered by Dakota Digital

Dakota Digital is best known for its extensive range of digital instrument clusters, including speedometers, tachometers, and fuel gauges. Their products are designed to enhance not only the aesthetic appeal of a vehicle’s dashboard but also its functionality. In addition to instrument clusters, Dakota Digital offers a variety of accessories such as wiring harnesses, control modules, and mounting solutions, ensuring that every installation is seamless and efficient.

Why Dakota Digital Stands Out

What sets Dakota Digital apart from the competition is their unwavering commitment to quality and customer satisfaction. Each product undergoes rigorous testing to ensure durability and accuracy, making them a reliable choice for automotive enthusiasts. Furthermore, Dakota Digital’s innovative designs incorporate advanced technology, such as Bluetooth connectivity, allowing users to monitor their vehicle’s performance in real-time through mobile applications. This blend of style, functionality, and cutting-edge technology makes Dakota Digital the ultimate choice for those looking to upgrade their vehicle's instrumentation.

In conclusion, if you're in the market for premium automotive parts, Dakota Digital should be your go-to brand. Explore their impressive lineup at Vivid Racing and experience the difference that quality and innovation can make in your vehicle.
