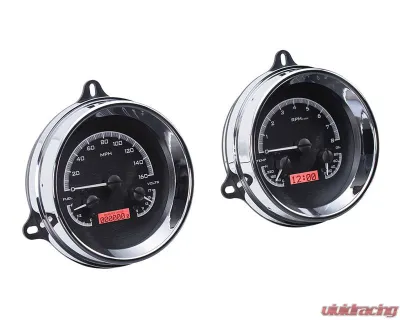

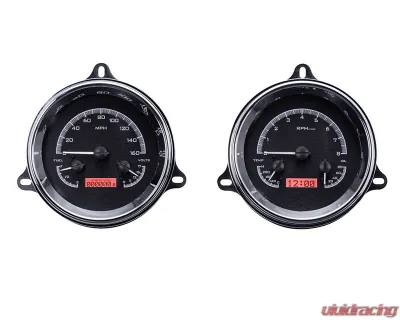

Dakota Digital MHX-54C-PU-K-R Instrument Cluster

For enthusiasts of classic GM trucks, the Dakota Digital MHX-54C-PU-K-R is a must-have upgrade that seamlessly blends vintage aesthetics with modern technology. Designed specifically for 1955 1st Series Pickup and compatible with various GM truck models, this instrument cluster features fully machined, show-chromed bezels that make installation a breeze.

Why Choose the MHX Series?

The MHX Series stands out with its fully illuminated needles, backlit faces, and a highly visible LCD message center. These enhancements not only elevate the look of your dashboard but also improve functionality. With micro-controlled precision stepper motors and solid-state sensors, you can expect unparalleled accuracy in your readings. Plus, Dakota Digital backs this product with a limited lifetime warranty, ensuring your investment is protected.

Fitment Details

This instrument system is engineered to fit the stock dash opening of your vehicle, providing a direct fit for hassle-free installation. However, please note that it does not fit GMC models. If you're considering using this system in a vehicle it wasn't designed for, be prepared for potential installation challenges related to mounting and viewing angles.

Dimensions

• Required Opening: 6.150"
• Overall Dimensions: 6.4"
• Depth: Mimics stock gauge cluster, typically in the 1.5" - 2.5" range.

Technical Specifications

Analog Gauges

• Speedometer: 0 - 120 MPH (optional metric version 0-195 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (optional metric version 40-120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

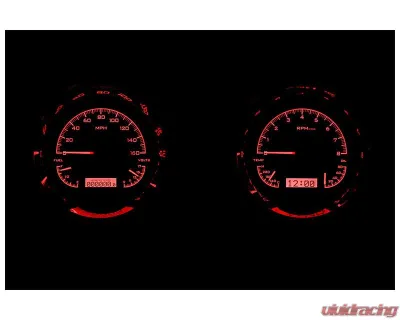

• Lighting: Backlit technology for improved visibility in all conditions.

Digital Message Centers

• Standard Displays:
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0-9,999.9)
  • Clock (12 hour)
• Performance Meters:
  • 0-60 MPH Timer (0-100 km/h)
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi displayed in 1 psi increments)
  • Water Temperature (100-300°F/40-150°C displayed in 1°F/C increments)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD display for optimal visibility
  • LED backlit for night-time use

Included Sensors

• Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces Ford and/or GM style speedometer cables with a 10 ft harness.
• Bushings: Includes various NPT bushings for easy installation.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

Programming your Dakota Digital instruments is straightforward, thanks to the included pushbuttons. Mount them in an accessible location to calibrate your speedometer, set cylinder counts, and adjust the fuel level gauge. Once configured, these buttons also allow you to navigate the wealth of information in the Digital Message Centers.

Customer Insights

Owners of classic GM trucks rave about the MHX-54C-PU-K-R. One 1955 Pickup owner noted, "This cluster transformed my dashboard into a modern masterpiece while keeping the classic vibe. The installation was straightforward, and the visibility is top-notch!"

Upgrade your ride with the Dakota Digital MHX-54C-PU-K-R and experience the perfect blend of style, functionality, and cutting-edge technology!
