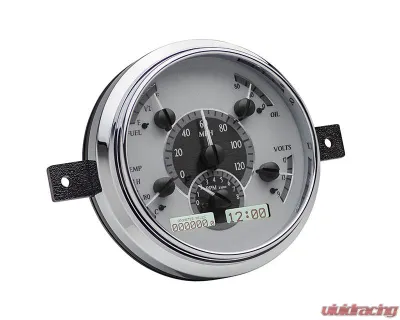

If you’re looking to upgrade your classic 1949-50 Ford's dashboard without losing that vintage charm, the MHX-49F gauge bezel is a solid choice. This isn’t just any replacement; it comes with a stunning show-chromed, billet aluminum bezel that fits right into the original dash points. So, no need to worry about cutting or modifying your beloved ride. It’s designed to work seamlessly with the stock setup, and you can even pair it with the VLC-49F clock/message center if you want to take things a step further (sold separately, of course).

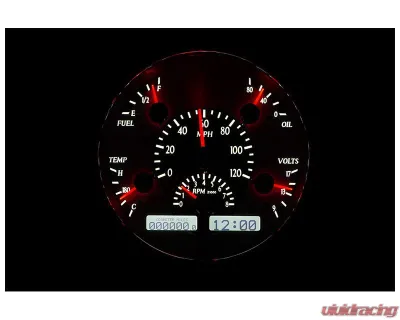

What really sets the MHX Series apart are the details. The fully lit needles and backlit faces make it easy to read at a glance, whether you’re cruising down the highway or tackling a back road. Plus, the LCD message center is bright and clear, giving you all the info you need without any fuss. Under the hood, you’ve got precision stepper motors and solid-state sensors that deliver accuracy you can trust. Seriously, these gauges are engineered to perform, and they come backed by an unbeatable limited lifetime warranty—something Dakota Digital is known for.

Everything is crafted right in Sioux Falls, South Dakota, which adds a nice touch of American craftsmanship to your classic car. The MHX Series has really shaken things up in the instrumentation world, blending modern tech with timeless design.

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (or opt for the metric version, 0 - 195 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (metric option available, 40 - 120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC
• Lighting: Each gauge face is illuminated with LEDs, ensuring you can read everything clearly, even in low light.

Digital Message Centers

• Standard Displays:
  • Odometer (one-time user settable, million-mile capability)
  • Dual (A/B) trip meter (0 - 9,999.9)
  • 12-hour clock
• Performance Meters:
  • 0-60 MPH timer
  • 1/4 mile time and end speed
  • High speed and RPM recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi, displayed in 1 psi increments)
  • Water Temperature (100-300°F / 40-150°C, displayed in 1°F/C increments)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight visibility
  • LED backlit for nighttime readability

Built-in Indicators

• Indicators:
  • Turn signals (left/right)
  • High beam
  • Check engine
  • Parking brake
  • Cruise control (on/on & engaged when equipped)
  • Gear position (optional GSS-3000 sensor required)
  • 4x4 (when equipped)
  • Wait to start (when equipped)
• Note: Not all OEM indicator lamp functions will be replaced. If you want to add more indicators, consider repurposing some unused ones to fit your needs.

Included Sensors

• Water Temperature: 1/8" NPT, ground-isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces Ford/GM-style speedometer cables with a 10 ft harness. Needs about 5" clearance to fit properly, but if you need more space, check out part #130011 (sold separately) for relocation options.
• Bushings: Each kit comes with a variety of bushings to fit different sizes, including 1/8" to 1/4", 3/8", and 1/2" NPT.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

• Pushbutton: Setting up your Dakota Digital instruments is straightforward. Just mount the included pushbuttons in an easy-to-reach spot, and you’ll be able to calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. Once you’re all set up, those same buttons give you access to all the info in the Digital Message Centers.

So, if you're ready to give your classic Ford a modern twist while keeping that vintage vibe, the MHX-49F is definitely worth considering.
