If you're looking to give your classic ride a serious upgrade, check out the Dakota Digital MHX Series gauge system. These aren't just any gauges; they’re crafted from billet aluminum and chrome plated, which makes them not only durable but also a real eye-catcher in your dash. The analog sweeps have this modern twist while still keeping that vintage charm that we all love.

You’ve got options too. Whether you prefer a sleek black or shiny silver alloy face, you can choose from blue, red, or white backlighting. This means you’ll always have clear visibility, day or night. Plus, the fully lit needles and backlit faces are designed to catch your attention when you need it the most. It’s all about function and style.

Now, let’s talk tech. The MHX Series is packed with features that set it apart from the old-school gauges. Inside, you’ll find micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can trust. And if you're the type who likes to customize, the user-friendly display feedback lets you tweak things to your liking. Oh, and did I mention the limited lifetime warranty? That's Dakota Digital's way of saying they stand behind their craftsmanship.

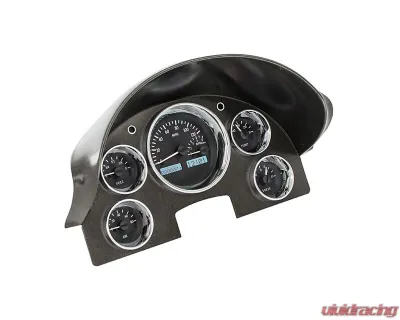

These gauges are engineered and manufactured right in Sioux Falls, South Dakota, so you know you're getting quality. The speedometer and tachometer measure in at 5.07 inches overall, with a cutout size of 4.72 inches. The satellite gauges are a bit smaller at 2.675 inches overall, with a cutout size of 2.47 inches. Just keep in mind that the cast metal dash bezel isn’t included, so you’ll need to sort that out separately.

Specifications:

• Speedometer: 0-120 MPH (with an optional metric version up to 195 km/h)
• Tachometer: 0-8,000 RPM
• Oil Pressure: 0-80 psi
• Water Temperature: 100-260°F (optional metric version 40-120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9-17 VDC

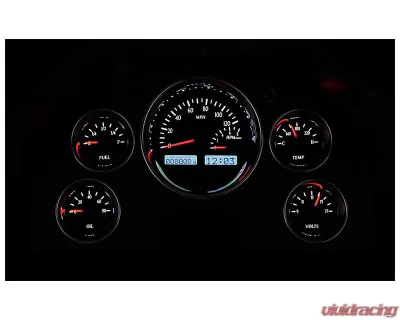

The backlit technology is a game changer for performance instrumentation, allowing you to quickly glance at the important stuff without missing a beat. Each number, tick mark, and indicator is illuminated by a series of LEDs behind the gauge face, so you won’t be squinting to see what’s going on.

Digital Message Centers:

• Standard Displays: Odometer (settable, million-mile), Dual Trip Meter (0-9,999.9), Clock (12-hour)
• Performance Meters: 0-60 MPH Timer, 1/4 mile time, trap speed, high-speed recall, and high RPM recall
• Gauges: Speedometer (0-255 MPH/km/h), Tachometer (0-9,900 RPM), Oil Pressure (0-100 psi), Water Temperature (100-300°F/40-150°C), Voltmeter (9-17 VDC), Fuel Level (0-99% full)
• Indicators: Turn signals, high beam, check engine, parking brake, cruise control, gear position (optional sensor required), 4x4 (when equipped), and wait to start (when equipped)

Included with your purchase are sensors for water temperature and oil pressure, along with a cable-driven speed sensor that replaces Ford and GM-style speedometer cables. Just make sure you have about 5 inches of clearance for the sensor to fit properly.

Calibration:

Setting everything up is straightforward. The Dakota Digital instruments are programmed with a simple push of a button. Just mount the included buttons somewhere easy to access, and you’ll be able to calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. Once you’re all set up, these buttons also let you dive into the wealth of information available in the Digital Message Centers.

Fitment:

• Ford Fairlane 1956
• Ford Thunderbird 1956

So, if you’re ready to take your 1956 Ford to the next level, the Dakota Digital MHX Series is a solid choice. It’s all about blending that classic look with modern tech, and trust me, your cruiser will thank you for it.
