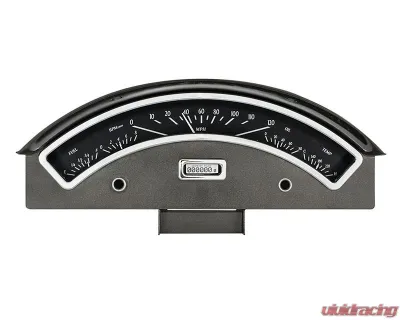

If you’re looking to breathe new life into your 1957 Ford Full-size Car, the MHX Systems are a game changer. These kits fit right into your stock dash without any fuss—no modifications needed, though I should mention they don’t work with the Thunderbird. When you get this kit, you’ll find some slick, fully machined chrome trim for both the upper arched gauge and the rectangular odometer opening. Just pop it into the existing instrument housing (which isn’t included, by the way), and you’re good to go. Plus, you get to keep your stock turn signal bezels, but they’ve been upgraded to LED for better visibility.

Now, let’s talk about what really sets the MHX Series apart. You’ll notice the fully lit needles and backlit faces right away, but it’s the tech under the hood that makes these gauges stand out. We’re talking micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can count on. And if you’re the type who likes to customize, the user-friendly display feedback lets you tweak things to your liking. Dakota Digital backs this all up with a solid limited lifetime warranty, which is pretty much the gold standard in the instrumentation world. Everything’s engineered and made right here in Sioux Falls, South Dakota, so you know you’re getting quality.

Just a heads up, the cast factory dash and oil and generator bezels aren’t included, so keep that in mind when you’re shopping.

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (there’s an optional metric version that goes up to 195 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (or 40 - 120°C if you prefer metric)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

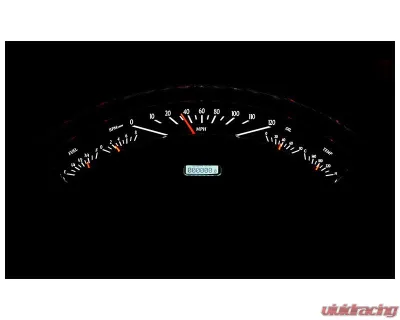

• Lighting: The backlit tech is a lifesaver, especially when you need to check your gauges in a hurry. Each number, tick mark, and indicator is illuminated by a series of LEDs.

Digital Message Centers

• Standard Displays:
  • Odometer (user-settable, million-mile capability)
  • Dual trip meter (0 - 9,999.9)
  • 12-hour clock
• Performance Meters:
  • 0-60 MPH timer
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi in 1 psi increments)
  • Water Temperature (100-300°F/40-150°C in 1°F/C increments)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight visibility.
  • LED backlit for nighttime use.

Built-in Indicators

• Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/Engaged)
  • Gear Position (optional GSS-3000 sensor needed)
  • 4x4 (if equipped)
  • Wait to Start (if equipped)
• **Keep in mind that not all OEM indicator functions will be replaced. If you want more indicators, you might need to repurpose some unused ones.

Included Sensors

• Water Temperature: 1/8" NPT, ground-isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces Ford and GM speedometer cables with a 10 ft harness. Just make sure you have about 5" of clearance for the sensor.
• Bushings: Comes with various bushings to fit your needs.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

• Pushbutton: Setting up the Dakota Digital gauges is a breeze. Just mount the included pushbuttons in a handy spot, and you can calibrate your speedometer, adjust the cylinder count, and set the fuel gauge with a simple push. Once you’re all set up, those same buttons give you access to all the info in the Digital Message Centers.

Fitment:

• Ford Country Sedan 1957
• Ford Country Squire 1957
• Ford Fairlane 1957
• Ford Thunderbird 1957

So, if you want to upgrade your ride with some serious tech while keeping that classic look, the MHX-57F-K-W Dakota Digital Black Alloy MHX System is definitely worth considering.
