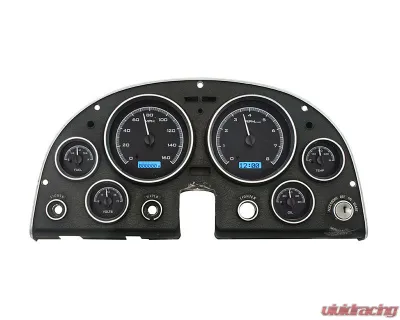

MHX Systems for 1963-67 Chevy Corvette

If you own a classic '63 to '67 Corvette, you know how important it is to keep that iconic vibe while upgrading the tech under the hood. The MHX Systems fit right into your stock instrument housing—no cutting or fussing required. Seriously, it’s like they were made for each other.

Now, let’s talk features. These gauges come with fully lit needles and backlit faces, so you can actually see your speed at a glance, even when the sun’s blazing down. The LCD message center is a real game-changer, giving you a clear read on everything from your oil pressure to fuel levels. It’s like having a co-pilot who’s always on the ball.

What’s under the hood? You’ve got precision stepper motors and solid-state sensors that deliver accuracy you can count on. Plus, you can customize the display feedback to suit your style. And don’t sweat the warranty—Dakota Digital backs their stuff with a limited lifetime guarantee. That’s confidence you can trust.

Made in Sioux Falls, South Dakota, this series has seriously changed the game for instrument panels. But remember, you’ll need to use your factory bezel; it’s not included in the kit.

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (or 0 - 195 km/h if you prefer metric)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (or 40 - 120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC
• Lighting: Each gauge face is lit with LEDs, ensuring you see what matters most when you need it.

Digital Message Centers

• Standard Displays:
  • Odometer (settable, million-mile capability)
  • Dual trip meter (0 - 9,999.9)
  • 12-hour clock
• Performance Meters:
  • 0-60 MPH timer
  • 1/4 mile time
  • 1/4 mile trap speed
  • High-speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0 - 255 MPH/kmh)
  • Tachometer (0 - 9,900 RPM)
  • Oil Pressure (0 - 100 psi)
  • Water Temperature (100 - 300°F)
  • Voltmeter (9 - 17 VDC)
  • Fuel Level (0 - 99% full)
• Lighting:
  • Auto-contrasting LCD for bright sunlight
  • LED backlit for a seamless look at night

Built-in Indicators

• Turn signals (left/right)
• High beam
• Check engine
• Parking brake
• Cruise control (if equipped)
• Gear position (requires optional sensor)
• 4x4 indicator (if equipped)
• Wait to start (if equipped)

Included Sensors

• Water Temperature: 1/8" NPT sensor with a 10 ft harness
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness
• Cable Driven Speed Sensor: Replaces Ford/GM style cables with a 10 ft harness. Needs about 5" clearance.
• Bushings: Comes with various NPT bushings for easy installation.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

Setting up the MHX is a breeze. Just mount the included pushbuttons in a handy spot, and you can calibrate everything from the speedometer to the fuel gauge. Once you’ve got it dialed in, those same buttons give you access to all the cool info in the digital message centers.

Fitment:

• Chevrolet Corvette 1963-1967

So, if you're looking to give your classic Corvette a tech upgrade without losing that vintage charm, the MHX Systems are definitely worth a look.
