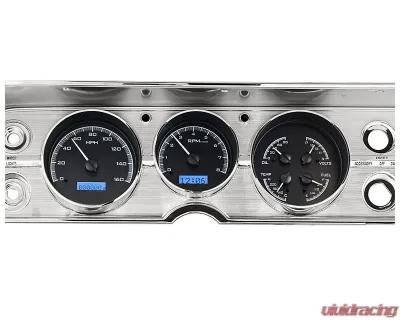

Back in 1964, GM really hit the sweet spot with their midsize muscle cars—just think about the Malibu and El Camino tearing up the streets. If you’re looking to keep that classic vibe alive while giving your ride a modern twist, the MHX-64C-CVL is just what you need. This setup fits right into your stock or reproduction dash bezel, which you can grab separately, and it’s packed with features that’ll keep you informed on the go.

One of the first things you’ll notice about the MHX Series is how easy it is to read. The fully lit needles and backlit faces make it super simple to get a quick glance at your gauges, even in bright sunlight. Plus, those LCD message centers? They’re a game changer. You can actually see what’s going on with your car without squinting or guessing.

But it’s not just about looks. The tech behind these gauges is impressive. We’re talking about micro-controlled precision stepper motors and solid-state sensors that deliver accuracy like you wouldn’t believe. You can even customize the display feedback to suit your style. And let’s not forget about the limited lifetime warranty—Dakota Digital really stands behind their stuff, which is a huge plus for anyone who’s serious about their ride.

Manufactured right in Sioux Falls, South Dakota, this series has seriously changed the game for instrumentation. It’s a solid investment for anyone looking to upgrade their classic Chevy.

Specifications:

• Analog Gauges:
  • Speedometer: 0 - 120 MPH (metric version available up to 195 km/h)
  • Tachometer: 0 - 8,000 RPM
  • Oil Pressure: 0 - 80 psi
  • Water Temperature: 100 - 260°F (metric version 40 - 120°C)
  • Fuel Level: E, 1/4, 1/2, 3/4, F
  • Voltmeter: 9 - 17 VDC
  • Lighting: Each gauge is lit with LEDs for precision visibility, making sure you can see the important stuff at a glance.
• Digital Message Centers:
  • Standard Displays:
    • Odometer (settable, million-mile capability)
    • Dual Trip Meter (0 - 9,999.9)
    • Clock (12-hour format)
  • Performance Meters:
    • 0-60 MPH Timer
    • 1/4 Mile Time
    • 1/4 Mile End Speed
    • High Speed Recall
    • High RPM Recall
  • Gauges:
    • Speedometer (0-255 MPH/km/h)
    • Tachometer (0-9,900 RPM)
    • Oil Pressure (0-100 psi in 1 psi increments)
    • Water Temperature (100-300°F/40-150°C in 1°F/C increments)
    • Voltmeter (9-17 VDC)
    • Fuel Level (0-99% full)
  • Lighting:
    • Auto-contrasting LCD for bright sunlight visibility.
    • LED backlighting for nighttime driving.
• Built-in Indicators:
  • Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Gear Position (optional sensor needed), 4x4 (if equipped), Wait to Start (if equipped).
• Included Sensors:
  • Water Temperature: 1/8" NPT sensor with a 10 ft harness.
  • Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
  • Cable Driven Speed Sensor: Replaces Ford/GM style speedometer cables with a 10 ft harness.
  • Bushings: Comes with various NPT and metric bushings.
  • Control Box Dimensions: 5.5" x 3.5" x 1".
• Calibration:
  • Easy pushbutton setup for speedometer, cylinder count, and fuel level gauge calibration.

Fitment:

• Chevrolet Chevelle 1964-1965
• Chevrolet El Camino 1964-1965

Whether you’re cruising down the highway or just showing off at a car meet, the MHX-64C-CVL is gonna give your classic that modern edge while keeping everything you love about it intact.
