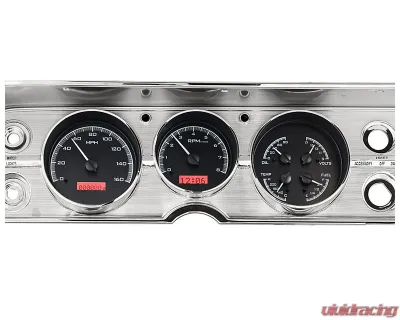

Back in 1964, GM really made waves with their midsize muscle cars, and the Malibu and El Camino were at the forefront of that revolution. If you're looking to keep that legacy alive, the MHX-64C-CVL is the way to go. This set of instrumentation is designed to fit right into your stock or reproduction dash bezel—just a heads up, the bezel isn’t included, but you can grab one separately without any hassle.

What sets the MHX Series apart from the old-school gauges? For starters, the fully lit needles and backlit faces make it easy to see what’s going on at a glance, day or night. And let’s not forget about the LCD message centers—they’re super clear and provide a ton of useful info. Inside, you’ve got some serious tech at play, like micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can trust. Plus, if you ever run into an issue, Dakota Digital backs this up with a limited lifetime warranty, which is a nice peace of mind.

Everything's made right in Sioux Falls, South Dakota, so you know you’re getting quality craftsmanship. The MHX Series has really changed the game when it comes to instrumentation, blending classic style with modern functionality.

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (there’s a metric version too, if you need it—0-195 km/h)
• Tachometer: Ranges from 0 to 8,000 RPM
• Oil Pressure: 0 to 80 psi
• Water Temperature: Monitors from 100 to 260°F (or 40-120°C for the metric version)
• Fuel Level: Displays E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 to 17 VDC

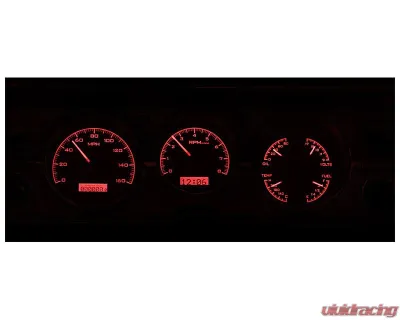

• Lighting: The backlit technology is a game changer. You’ll appreciate how each number, tick mark, and indicator is illuminated by LEDs, making it easy to read when it matters most.

Digital Message Centers

• Standard Displays:
  • Odometer (settable, million-mile capability)
  • Dual Trip Meter (0-9,999.9)
  • Clock (12-hour format)
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 mile time and end speed
  • High speed and RPM recall features
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi)
  • Water Temperature (100-300°F/40-150°C)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • The LCD display auto-adjusts for sunlight, so you can read it anywhere.
  • LED backlighting at night keeps everything looking sharp.

Built-in Indicators

• Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control
  • Gear Position (optional sensor required)
  • 4x4 Indicator
  • Wait to Start (if equipped)
• Note: Not all OEM indicator functions will be replicated, so if you need more indicators, consider reusing some unused ones.

Included Sensors

• Water Temperature: 1/8" NPT sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Speed Sensor: Replaces Ford/GM style cables, comes with a 10 ft harness. Make sure you have about 5" clearance for installation.
• Bushings: Comes with a variety of bushings for different thread sizes.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

• Pushbutton: Easy to use for programming your gauges. Just mount them where you can reach easily, and you're set to calibrate your speedometer, cylinder count, and fuel level gauge. Once you're all set up, these buttons also give you access to the digital message center info.

Fitment:

• Chevrolet Chevelle 1964-1965
• Chevrolet El Camino 1964-1965

If you’re ready to give your classic ride a modern twist without losing that vintage charm, the MHX-64C-CVL is a solid choice. It's all about keeping the spirit alive while giving you the tech you need on the road.
