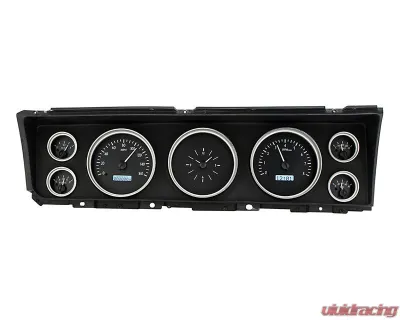

If you're looking to breathe new life into your classic 1967 Chevy Caprice or Impala, the MHX Systems are an absolute game changer. These gauges fit snugly into your stock instrument bezel without any need for modifications, which is a huge plus for anyone who wants to keep that classic look while upgrading functionality.

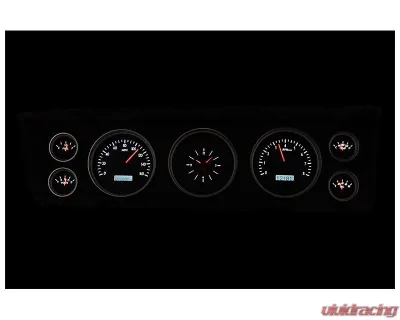

What really sets the MHX Series apart is the attention to detail. You’ve got fully lit needles and backlit faces that make it easy to read at a glance, even in low light. And let’s not forget the LCD message centers—they’re bright and clear, giving you all the info you need without the guesswork. Under the hood, these gauges are powered by micro-controlled precision stepper motors and solid-state sensors, which means you can count on them for spot-on accuracy every time. Plus, you can customize the display feedback to suit your style. And for peace of mind, Dakota Digital backs this with a limited lifetime warranty, which is pretty much the gold standard in the industry.

Manufactured right in Sioux Falls, South Dakota, these gauges are a testament to quality and innovation. They’re not just pretty faces; they’re built to last and perform.

Specifications

• Analog Gauges:
  • Speedometer: 0-120 MPH (or 0-195 km/h if you prefer metric)
  • Tachometer: 0-8,000 RPM
  • Oil Pressure: 0-80 psi
  • Water Temperature: 100-260°F (optional metric version 40-120°C)
  • Fuel Level: E, 1/4, 1/2, 3/4, F
  • Voltmeter: 9-17 VDC
  • Lighting: Each gauge is illuminated by LEDs, ensuring you can see every detail when it counts.
• Digital Message Centers:
  • Standard Displays:
    • Odometer (settable, million-mile capability)
    • Dual Trip Meter (0-9,999.9)
    • Clock (12-hour)
  • Performance Meters:
    • 0-60 MPH Timer
    • 1/4 mile time and end speed
    • High speed and RPM recall
  • Gauges:
    • Speedometer (0-255 MPH/km/h)
    • Tachometer (0-9,900 RPM)
    • Oil Pressure (0-100 psi in 1 psi increments)
    • Water Temperature (100-300°F/40-150°C in 1°F/°C increments)
    • Voltmeter (9-17 VDC)
    • Fuel Level (0-99% full)
  • Lighting:
    • Auto-contrasting LCD for bright sunlight visibility.
    • LED backlighting for nighttime readability.
• Built-in Indicators:
  • Turn Signals, High Beam, Check Engine, Parking Brake, and more.
  • Note: Not all OEM indicator functions will be replaced, but you can repurpose unused indicators as needed.
• Included Sensors:
  • Water Temperature: 1/8" NPT sensor with a 10 ft harness.
  • Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
  • Cable Driven Speed Sensor: Replaces Ford/GM style cables, requires about 5" clearance.
  • Bushings for various sizes included.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Setting everything up is straightforward, thanks to the included pushbuttons. You can easily calibrate your speedometer and set the cylinder count and fuel gauge with just a few presses. Once you're set up, accessing the wealth of information in the Digital Message Centers is a breeze.

Fitment:

• Chevrolet Caprice 1967
• Chevrolet Impala 1967

In short, if you're serious about your classic ride and want instrumentation that matches its legacy, the MHX Systems are worth every penny. They’re not just gauges; they’re a modern upgrade for a timeless classic.
