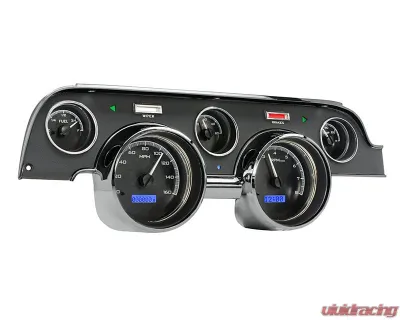

If you're looking to breathe some modern life into your classic 1967-68 Mustang without going all butcher on it, the MHX-67F-MUS is your ticket. This setup mounts right onto your stock or reproduction instrument bezel, keeping those original turn signal spots intact while swapping in some slick LED lighting. Seriously, it’s like giving your vintage ride a tech upgrade without losing its soul.

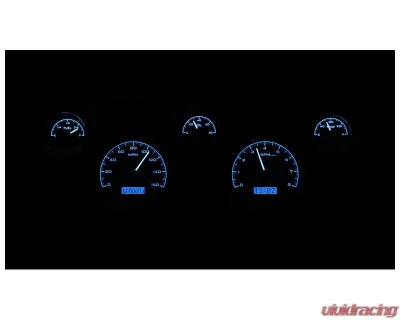

One glance at the MHX Series, and you’ll notice the fully lit needles and backlit faces that make reading your gauges a breeze, day or night. But it’s not just about looks; the real magic happens under the hood. We’re talking about micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can trust. Plus, you can customize your display feedback—how cool is that? And hey, if you’re worried about longevity, Dakota Digital backs this with a limited lifetime warranty, setting the bar high for instrumentation systems.

Built in Sioux Falls, South Dakota, this series has really shaken up the instrumentation game. Just a heads-up, though: the bezel is sold separately, so keep that in mind when you’re planning your upgrade.

Specifications

Analog Gauges

• Speedometer: 0-120 MPH (or 0-195 km/h if you're feeling metric)
• Tachometer: 0-8,000 RPM
• Oil Pressure: 0-80 psi
• Water Temperature: 100-260°F (40-120°C optional)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9-17 VDC
• Lighting: Each gauge is lit with LEDs, ensuring you can see everything at a glance, even when the pressure’s on.

Digital Message Centers

• Standard Displays:
  • Odometer (settable, million-mile capability)
  • Dual Trip Meter (0-9,999.9)
  • Clock (12-hour format)
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 mile time and end speed
  • High-speed and high RPM recall
• Gauges:
  • Speedometer (up to 255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi)
  • Water Temperature (100-300°F/40-150°C)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight visibility.
  • LED backlighting for nighttime driving.

Built-in Indicators

• Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control
  • Gear Position (requires optional GSS-3000 sensor)
  • 4x4 (if your ride is equipped)
  • Wait to Start (if applicable)
• Keep in mind, not all OEM indicator functions will be replaced, so if you want more indicators, you might need to get creative with some unused ones.

Included Sensors

• Water Temperature: Comes with a 1/8" NPT sensor and a 10 ft harness.
• Oil Pressure: Solid-state sensor, also 1/8" NPT with a 10 ft harness.
• Cable Driven Speed Sensor: Replaces your old speedometer cables with a 10 ft harness. Just ensure you have about 5 inches of clearance between the cable drive output and any obstructions.
• Bushings: You’ll get a variety of bushings to fit your needs right out of the box.
• Control Box Dimensions: 5.5" x 3.5" x 1".

Calibration

Setting up your Dakota Digital instruments is a breeze with the included pushbuttons. Just mount them somewhere handy, and you can easily calibrate your speedometer, set the cylinder count, and adjust your fuel level gauge. Once you’re all set up, those buttons give you access to a ton of info in the Digital Message Centers.

Fitment

• Ford Mustang 1967-1968
