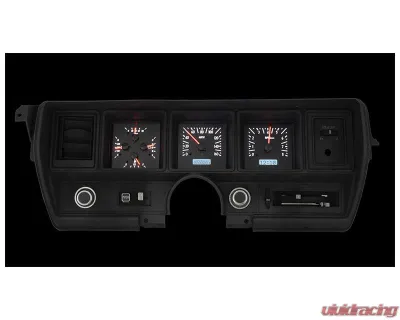

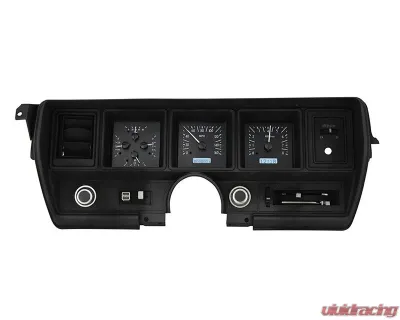

If you're looking to upgrade your classic Buick's dashboard, the Dakota Digital MHX Series is a game-changer. You know how frustrating it can be to squint at old gauges that barely tell you what's going on under the hood. This setup is all about visibility and precision. The fully lit needles and backlit faces make it easy to read at a glance, whether you're cruising down the highway or navigating through city traffic. And that LCD message center? It's a lifesaver for keeping tabs on everything from your speed to your oil pressure.

What really sets the MHX Series apart, though, are the hidden features that make a big difference. We're talking about micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can trust. No more guessing if you're really at 60 MPH or if that oil pressure reading is on point. Plus, the customizable display feedback means you can set it up just the way you like it. And let’s not forget about the limited lifetime warranty—Dakota Digital stands behind their products, and that’s something you can count on.

Manufactured right in Sioux Falls, South Dakota, this series has changed the game for instrumentation. It’s not just about looks; it’s about performance and reliability.

Specifications:

• Analog Gauges:
  • Speedometer: 0 - 120 MPH (there’s a metric version too, 0 - 195 km/h if you need it)
  • Tachometer: 0 - 8,000 RPM
  • Oil Pressure: 0 - 80 psi
  • Water Temperature: 100 - 260°F (optional metric version 40 - 120°C)
  • Fuel Level: E, 1/4, 1/2, 3/4, F
  • Voltmeter: 9 - 17 VDC
  • Lighting: Each gauge is lit by a series of LEDs, making it easy to see all the important info quickly, even in low light.
• Digital Message Centers:
  • Standard Displays:
    • Odometer (One-time user settable, Million Mile)
    • Dual (A/B) Trip Meter (0 - 9,999.9)
    • Clock (12 hour)
  • Performance Meters:
    • 0 - 60 MPH Timer
    • 1/4 mile time
    • 1/4 mile end speed (trap speed)
    • High speed recall
    • High RPM recall
  • Gauges:
    • Speedometer (0 - 255 MPH/km/h)
    • Tachometer (0 - 9,900 RPM)
    • Oil Pressure (0 - 100 psi)
    • Water Temperature (100 - 300°F/40 - 150°C)
    • Voltmeter (9 - 17 VDC)
    • Fuel Level (0 - 99% full)
  • Lighting:
    • Auto-contrasting LCD display for bright sunlight visibility, plus LED backlighting for night driving.
• Built-in Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/On & Engaged)
  • Gear Position (Optional GSS-3000 sensor required)
  • 4 x 4 (When equipped)
  • Wait to Start (When equipped)
• Included Sensors:
  • Water Temperature: 1/8" NPT, ground-isolated sensor with a 10 ft harness.
  • Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
  • Cable Driven Speed Sensor/Generator: Replaces Ford/GM style speedometer cables with a 10 ft harness. Requires about 5" clearance.
  • Bushings: Comes with various sizes to fit your needs.

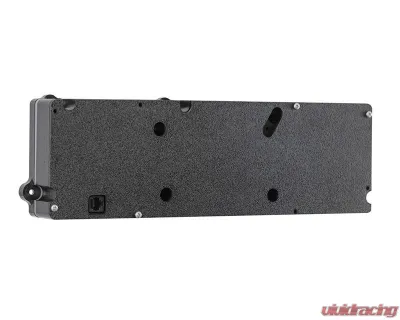

  • Control Box Dimensions: 5.5" x 3.5" x 1".
• Calibration:
  • Easy pushbutton setup lets you calibrate the speedometer and other gauges with just a few clicks.

Fitment:

• Buick GS 1970-1972
• Buick Skylark 1970-1972

If you're serious about your ride, the MHX-70B-SKY-K-W Dakota Digital Black Alloy MHX System is worth considering. It’s not just about looking good; it’s about having a reliable, accurate way to monitor your engine's performance. Trust me, once you make the switch, you won't look back.
