If you're into Chevy trucks like I am, you know that the classic curves of these models are just begging for a modern touch. That’s where the MHX Series comes in. It’s not just another set of gauges; it’s a total game-changer for your ride.

First off, let’s talk visibility. The fully lit needles and backlit faces make it easy to read everything at a glance, even in bright sunlight. Plus, the LCD message center is a huge upgrade from the old-school setups. You get micro-controlled precision stepper motors and solid-state sensors that deliver accuracy like you wouldn’t believe. And if you’re the type who likes to customize, you can tweak the display feedback to your liking. That’s a feature you don’t see every day.

Now, I’ve put these gauges through their paces, and I can tell you they’re built to last. Made right in Sioux Falls, South Dakota, the MHX Series has really set a new standard in the instrumentation world. And let’s be real, the limited lifetime warranty is a nice touch—Dakota Digital stands behind their products.

Just a heads-up: the bezel isn’t included, so you’ll need to use your OEM or a reproduction style bezel. And for those of you with GMC models, this won’t fit—so keep that in mind.

Specifications

Analog Gauges

• Speedometer: 0 - 120 MPH (or go metric with 0-195 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (metric version available: 40-120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC
• Lighting: LED backlighting gives you precise visibility when you need it most.

Digital Message Centers

• Standard Displays:
  • Odometer (user-settable, up to a million miles)
  • Dual Trip Meter (0 - 9,999.9)
  • 12-hour Clock
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 Mile Time
  • 1/4 Mile End Speed
  • High Speed Recall
  • High RPM Recall
• Gauges:
  • Speedometer (0 - 255 MPH/km/h)
  • Tachometer (0 - 9,900 RPM)
  • Oil Pressure (0-100 psi)
  • Water Temperature (100-300°F)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD for sunny days
  • LED backlit for night driving

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (if equipped)
• Gear Position (optional sensor required)
• 4x4 (if equipped)
• Wait to Start (if equipped)

Included Sensors

• Water Temperature: 1/8" NPT sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor: Replaces Ford/GM speedometer cables.
• Bushings: Comes with various NPT bushings for easy installation.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

Setting everything up is a breeze with the included pushbuttons. You can mount them wherever is convenient, and they let you calibrate the speedometer, set the cylinder count, and adjust the fuel level gauge. Once you’re all set up, those same buttons give you access to all the info in the Digital Message Centers.

Fitment

• Chevrolet C/K 10 (1964-1966)
• Chevrolet C/K 20 (1964-1966)
• Chevrolet C/K 30 (1964-1966)

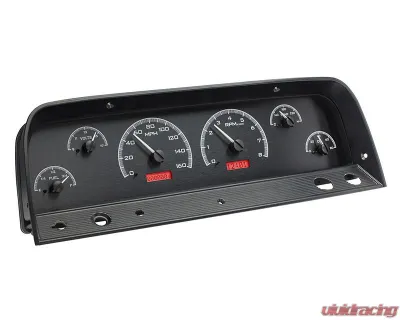

If you’re looking to breathe new life into your classic Chevy, the MHX-64C-PU-K-R Dakota Digital Black Alloy MHX System is a solid choice. It’s got the looks and the tech to keep you informed and in control on the road.
