If you've got a 1986-93 "Square" S10 or S15, you probably know it's a blank slate for upgrades and personalization. The MHX Direct-fit package is designed to fit right in without any hassle. You can wire it directly to your OEM harness or go with an aftermarket setup if that’s more your style. The best part? It comes with all the sensors you need, making installation a walk in the park. Plus, with a range of background and lighting colors, you can make it match whatever custom vibe you’ve got going on with your ride.

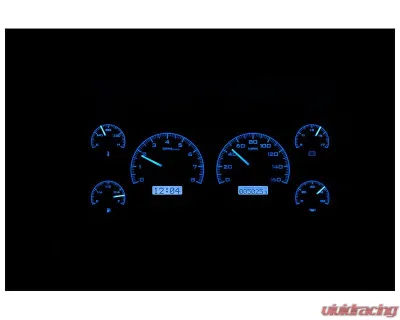

What really sets the MHX Series apart are the details. You’ve got fully lit needles and backlit faces, not to mention two bright LCD message centers that keep everything visible, even in bright sunlight. Under the hood, it’s all about precision, thanks to micro-controlled stepper motors and solid-state sensors that deliver accurate readings. And if you’re worried about longevity, Dakota Digital backs this with a limited lifetime warranty—something they’re known for in the industry.

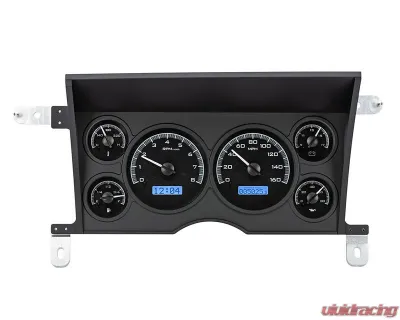

This system replaces your entire factory instrument cluster and lens assembly. It’s remade with a sturdy billet aluminum housing and tough optical-grade polycarbonate lenses, so you know it’s built to last.

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (or 0 - 195 km/h if you prefer metric)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (optional metric version 40 - 120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC
• Lighting: Each gauge is lit by a series of LEDs, making it easy to read everything at a glance, day or night.

Digital Message Centers

• Standard Displays:
  • Odometer (settable, million-mile capability)
  • Dual Trip Meter (0 - 9,999.9)
  • Clock (12-hour format)
• Performance Meters:
  • 0 - 60 MPH Timer
  • 1/4 mile time
  • 1/4 mile end speed
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0 - 255 MPH/km/h)
  • Tachometer (0 - 9,900 RPM)
  • Oil Pressure (0 - 100 psi in 1 psi increments)
  • Water Temperature (100 - 300°F/40 - 150°C in 1°F/C increments)
  • Voltmeter (9 - 17 VDC)
  • Fuel Level (0 - 99% full)
• Lighting:
  • Auto-contrasting LCD for bright sunlight visibility.
  • LED backlighting for a sleek look at night.

Built-in Indicators

• Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/On & Engaged)
  • Gear Position (optional sensor required)
  • 4x4 (when equipped)
  • Wait to Start (when equipped)
• Note: Not all OEM indicator functions will be replaced. You might want to repurpose any unused indicators for your setup.

Included Sensors

• Water Temperature: 1/8" NPT, ground-isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness.
• Cable Driven Speed Sensor: Replaces Ford/GM style cables with a 10 ft harness. Needs about 5" clearance.
• Bushings: Comes with various NPT bushings for easy installation.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

• Pushbutton: Easy calibration with included buttons. Just mount them where you can reach them and you’re good to go.

Fitment:

• Chevrolet S-10 1986-1993
• GMC S-15 1986-1990

So, if you're looking to give your S10 or S15 a real upgrade, this MHX system is worth checking out. It's all about making your truck feel like yours while keeping everything functional and stylish.
