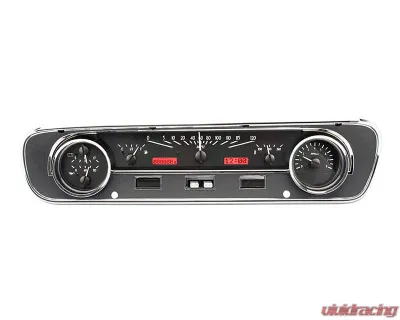

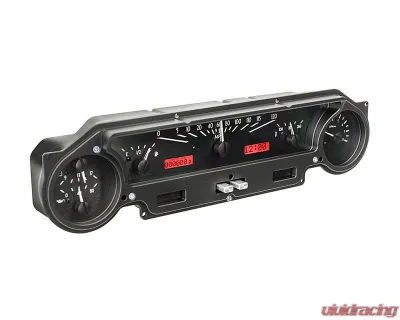

If you're thinking about upgrading the stock cluster in your 1964-65 Falcon, Ranchero, or Mustang, hold up for a second. You really need to check out this bolt-in assembly. It’s not just a swap; it’s a serious upgrade. We've packed six analog-sweep instruments into your existing gauge bezel, along with dual LCD message centers and discreet signal indicators. You can choose between a sleek Black or Silver Alloy face and pick your favorite LED backlighting color—red, blue, or white. Just a heads-up, the front bezel doesn’t come with it, so keep that in mind.

What sets the MHX Series apart from the old-school gauges? Well, for starters, the fully lit needles and backlit faces make it super easy to read, even in low light. And those LCD message centers? They’re bright and clear. Inside, it’s all about precision—thanks to micro-controlled stepper motors and solid-state sensors, you get accuracy that you can rely on. Plus, you can customize the display feedback to fit your style. And let’s not forget the limited lifetime warranty—Dakota Digital really stands behind their stuff. Everything is engineered and made right here in Sioux Falls, South Dakota, so you know it’s built to last.

Specifications:

• Speedometer: 0 - 120 MPH (or go metric with 0-195 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (or 40 - 120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

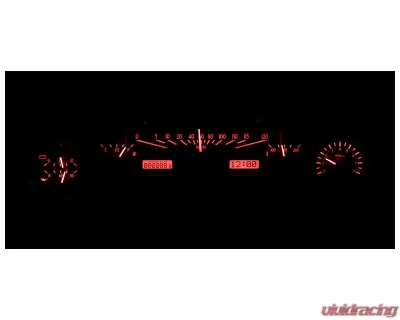

The backlit technology is a game changer for performance instrumentation. It gives you precise lighting, so you can quickly check what matters most while you’re driving. Each number, tick mark, and indicator is illuminated by a series of LEDs behind the gauge face, making everything crystal clear.

Digital Message Centers:

• Standard Displays:
  • Odometer (settable, Million Mile)
  • Dual (A/B) Trip Meter (0 - 9,999.9)
  • Clock (12 hour)
• Performance Meters:
  • 0 - 60 MPH Timer (0 - 100 km/h)
  • 1/4 mile time
  • 1/4 mile end speed
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0 - 255 MPH/km/h)
  • Tachometer (0 - 9,900 RPM)
  • Oil Pressure (0 - 100 psi)
  • Water Temperature (100 - 300°F / 40 - 150°C)
  • Voltmeter (9 - 17 VDC)
  • Fuel Level (0 - 99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight visibility.
  • LED backlit at night to keep the look consistent.

Built-in Indicators:

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (if equipped)
• Gear Position (requires optional GSS-3000 sensor)
• 4 x 4 (if equipped)
• Wait to Start (if equipped)

Just a note: not all OEM indicator functions will be replaced, so if you need more indicators, think about repurposing any unused ones to fit your needs.

Included Sensors:

• Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces Ford/GM style speedometer cables with a 10 ft harness. Needs about 5" clearance.
• Bushings: Comes with 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 threads.

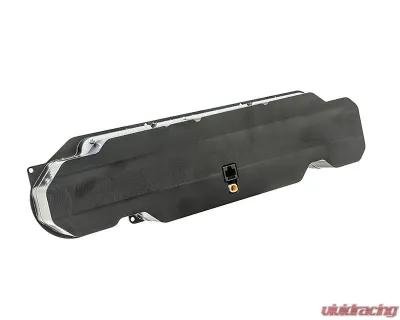

• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration:

• Pushbutton: Super easy to program. Just mount the included buttons where you can reach them, and you can calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. Once you’re set up, these buttons let you access all the info in the Digital Message Centers.

Fitment:

• Ford Falcon 1964-1965
• Ford Mustang 1964-1965
• Ford Ranchero 1964-1965

So if you’re looking to bring your classic ride into the modern age with style and functionality, the MHX-64F-FAL-K-R Dakota Digital Black Alloy MHX System is definitely worth a look.
