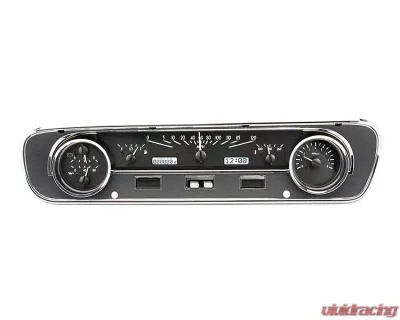

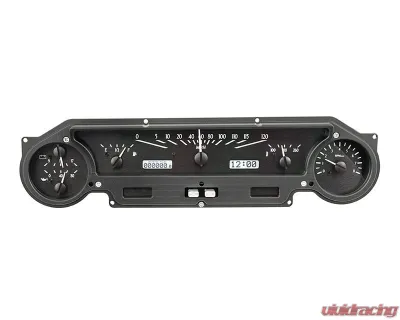

Hey there, classic car enthusiasts! Before you dive into swapping out that stock gauge cluster in your 1964-65 Falcon, Ranchero, or Mustang, you really should check out this slick bolt-in assembly we’ve got here. It’s got six analog-sweep instruments snugly fit into your existing gauge bezel, plus dual LCD message centers and some nifty hidden signal indicators. You can pick from a Black or Silver Alloy face, and the LED backlighting comes in red, blue, or white—so you can match your vibe.

What sets the MHX Series apart from the old-school gauges? Well, for starters, those fully lit needles and backlit faces make it super easy to read, even when you’re flying down the highway. And let’s not overlook the tech under the hood: we’re talking micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can trust. Plus, you can customize the display feedback to fit your style. And yeah, we back it all up with a lifetime warranty that’s become a hallmark of Dakota Digital’s instrumentation systems. Everything is engineered and manufactured right here in Sioux Falls, South Dakota, so you know you’re getting quality.

Just a heads up: the bezel isn’t included, and this setup won’t fit the '65-66 Custom Cab F100 trucks.

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (or go metric with 0-195 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (optional metric version 40-120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

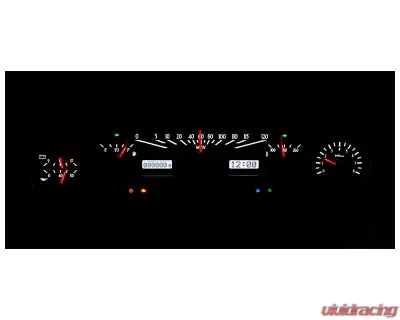

• Lighting: Each gauge is lit by a series of LEDs, making it easy to see what’s important at a glance.

Digital Message Centers

• Standard Displays:
  • Odometer (one-time user settable, million-mile capability)
  • Dual (A/B) Trip Meter (0 - 9,999.9)
  • Clock (12-hour format)
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 mile time and end speed (trap speed)
  • High-speed recall and high RPM recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi in 1 psi increments)
  • Water Temperature (100-300°F/40-150°C in 1°F/C increments)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight visibility.
  • LED backlit for a complete look at night.

Built-in Indicators

• Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/On & Engaged when equipped)
  • Gear Position (requires optional GSS-3000 sensor)
  • 4x4 (when equipped)
  • Wait to Start (when equipped)
• Note: Not all OEM indicator functions will be replaced. If you need more indicators, consider repurposing any unused ones.

Included Sensors

• Water Temperature: 1/8" NPT, ground-isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces Ford and/or GM style speedometer cables with a 10 ft harness. Needs about 5" of clearance between the cable drive output and any obstruction. If you need more room, check out Part # 130011 (sold separately) for relocation options.
• Bushings: Each kit comes with various bushings for fitting, including 1/8" to 1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 threads.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

• Pushbutton: Setting up your Dakota Digital instruments is a breeze with the included pushbuttons. Mount them where they’re easy to reach, and you can calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. Once you’re all set up, those same buttons give you access to a ton of info in the Digital Message Centers.

Fitment:

• Ford Falcon 1964-1965
• Ford Mustang 1964-1965
• Ford Ranchero 1964-1965

So, if you’re looking to step up your gauge game in your classic ride, this MHX system is definitely worth considering. It's got the features and reliability you need to keep your vintage beast running smoothly!
