If you're looking to upgrade your Jeep's dash, the MHX Series from Dakota Digital is a solid choice. This isn’t just another generic gauge set; it’s a direct-fit instrument system that combines that classic look with modern tech. Say goodbye to your old gauges and hello to a fresh setup that fits perfectly in your Jeep CJ3, CJ5, CJ6, or CJ-7 from '55 to '86. The machined aluminum and powder-coated bezels give it a rugged appearance, while the water-resistant electronics mean you can hit the trails without worrying about the elements.

One of the standout features is how easy it is to read. The fully lit needles and backlit faces ensure you can see everything at a glance, even in bright sunlight. Plus, the LCD message center is super clear, showing you all the info you need without any fuss. Inside, you’ll find precision stepper motors and solid-state sensors that provide accuracy you can trust. And if you’re the kind of person who likes to customize, you’ll appreciate the user-friendly display feedback options. Dakota Digital backs this with a lifetime warranty, which is pretty reassuring.

Specifications:

Analog Gauges

• Speedometer: 0-120 MPH (or 0-195 km/h if you prefer metric)
• Tachometer: 0-8,000 RPM
• Oil Pressure: 0-80 psi
• Water Temperature: 100-260°F (optional metric version 40-120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9-17 VDC

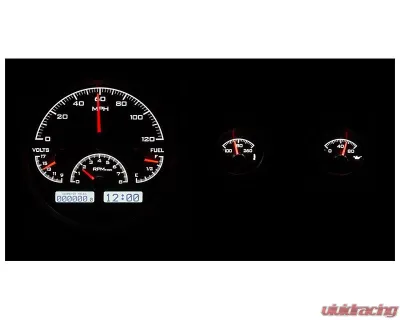

• Lighting: Each gauge is lit with LEDs for clear visibility, making it easy to check your stats at a quick glance.

Digital Message Centers

• Standard Displays:
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0-9,999.9)
  • Clock (12 hour)
• Performance Meters:
  • 0-60 MPH Timer (0-100 km/h)
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi)
  • Water Temperature (100-300°F/40-150°C)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight.
  • LED backlit for nighttime visibility.

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/On & Engaged when equipped)
• Gear Position (Optional GSS-3000 sensor required)
• 4 x 4 (When equipped)
• Wait to Start (When equipped)

Included Sensors

• Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces Ford/GM style speedometer cables with a 10 ft harness. Needs about 5" clearance.
• Bushings: Comes with various sizes to fit your setup.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration:

Setting everything up is a breeze with the included pushbuttons. Just mount them somewhere easy to reach, and you can calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. Once you’re set up, those same buttons let you access all the neat features in the Digital Message Centers.

Fitment:

• Jeep CJ3 1955-1968
• Jeep CJ5 1955-1983
• Jeep CJ6 1959-1975
• Jeep CJ-7 1976-1986

So, if you want a gauge system that’s built to last and looks great in your classic Jeep, the Dakota Digital MHX Series is worth checking out.
