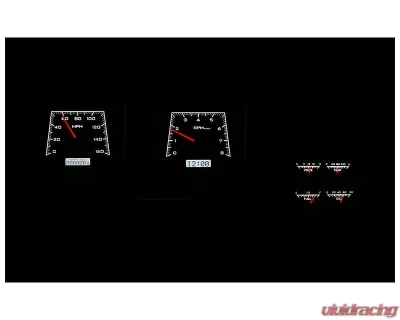

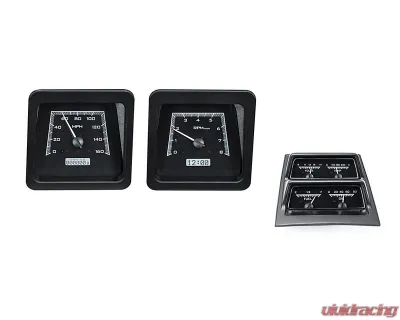

Get to Know the MHX System for Your '69 Camaro

If you’re looking to breathe some fresh life into your classic '69 Camaro, the MHX system is a game changer. It’s not just about looks; it’s about bringing modern tech right into your vintage ride. Installation? Super straightforward. Just attach it to the back of your stock instrument cluster and center console housing, and you’re good to go.

What sets the MHX Series apart? For starters, those fully lit needles and backlit faces are a huge upgrade from the old-school setups. You’ll also appreciate the crisp LCD message centers that are easy to read, even in bright sunlight. Inside, it’s all about precision with micro-controlled stepper motors and solid-state sensors that deliver accurate readings every time. Plus, you can customize the display feedback to suit your style. And hey, it comes with a limited lifetime warranty—because Dakota Digital stands by their gear.

Everything is made right here in Sioux Falls, South Dakota, so you know you’re getting a solid product that’s been engineered with care. The MHX Series is a real shift in how we think about instrumentation in our cars.

What’s Included?

The system comes with new lens inserts for your dash gauges, and it fits right into your stock or reproduction instrument housing (just a heads-up, those bezels aren’t included). Here’s a quick rundown of what you’ll find:

Analog Gauges:

• Speedometer: Reads 0-120 MPH (or 0-195 km/h if you prefer metric).
• Tachometer: Goes up to 8,000 RPM.
• Oil Pressure: Measures from 0 to 80 psi.
• Water Temperature: Ranges from 100 to 260°F (or 40-120°C).
• Fuel Level: Shows E, 1/4, 1/2, 3/4, and F.
• Voltmeter: 9-17 VDC.
• Lighting: LED backlighting for easy visibility—perfect for those late-night drives.

Digital Message Centers:

• Standard Displays: Odometer (million-mile capability), dual trip meter, and a 12-hour clock.
• Performance Meters: 0-60 MPH timer, quarter-mile times, and high-speed recalls.
• Gauges: All the essentials with precise increments for accurate readings.
• Lighting: Auto-contrasting LCD for clear visibility, day or night.

Built-in Indicators:

• Turn signals, high beam, check engine, parking brake, cruise control, and more.
• Note: Some OEM indicator functions might not transfer over, so you may want to repurpose any unused indicators.

Included Sensors:

• Water Temperature and Oil Pressure sensors with 10 ft harnesses.
• Cable Driven Speed Sensor/Generator—make sure you have about 5 inches of clearance for it to fit right.
• Comes with a variety of bushings for easy installation.

Control Box Dimensions:

5.5" x 3.5" x 1"—compact enough to fit in most setups without hassle.

Calibration:

Setting everything up is a breeze with the included pushbuttons. You can mount these wherever it’s convenient for you. They’ll help you calibrate the speedometer, set the cylinder count, and adjust the fuel level gauge. Once you’re all set up, these buttons give you access to all the info in the Digital Message Centers.

Fitment:

• Chevrolet Camaro 1969

So, if you’re ready to upgrade your dash and bring some modern flair to your classic Camaro, the MHX system is the way to go. It’s built for performance and style, and it’ll make your driving experience that much better.
