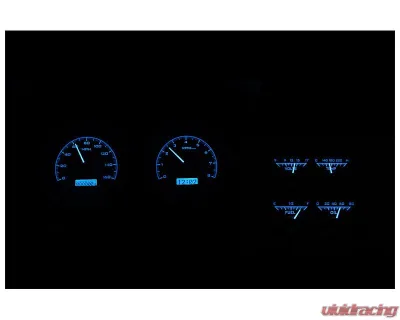

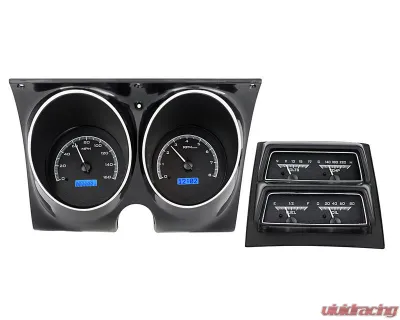

If you’re looking to give your classic 1968 Camaro a serious tech upgrade, the MHX system is where it’s at. This isn’t just another set of gauges; it’s a complete overhaul that brings your ride into the modern age without losing that vintage charm. The installation? Super straightforward. Just attach it directly to the back of your stock instrument and center console housings—no fuss, no hassle.

Let’s talk about what makes the MHX Series stand out. First off, you’ve got fully lit needles and backlit faces, which means you can actually see your gauges in any lighting. The LCD message centers are bright and clear, giving you all the info you need at a glance. But it’s not just about looks. The guts of this system are where the magic happens. We're talking about micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can trust. Plus, you can customize the display feedback to suit your style. And if that wasn’t enough, it comes with a limited lifetime warranty—Dakota Digital really stands behind their stuff.

Everything is engineered and built right in Sioux Falls, South Dakota. This isn’t some off-the-shelf kit; it’s a product of serious craftsmanship and attention to detail. Just keep in mind that the system fits stock or reproduction instrument and console housings, which aren’t included, so plan accordingly.

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (or go metric with 0 - 195 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (metric option: 40 - 120°C)
• Fuel Level: Displays E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC
• Lighting: Each gauge is lit with a series of LEDs, ensuring you can see what matters most, even in a hurry.

Digital Message Centers

• Standard Displays:
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0 - 9,999.9)
  • Clock (12 hour)
• Performance Meters:
  • 0 - 60 MPH Timer
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0 - 255 MPH/km/h)
  • Tachometer (0 - 9,900 RPM)
  • Oil Pressure (0 - 100 psi displayed in 1 psi increments)
  • Water Temperature (100 - 300°F / 40 - 150°C displayed in 1°F/C increments)
  • Voltmeter (9 - 17 VDC)
  • Fuel Level (0 - 99% full)
• Lighting:
  • Auto-contrasting LCD for bright sunlight visibility.
  • LED backlit for a sleek look at night.

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (if equipped)
• Gear Position (requires optional GSS-3000 sensor)
• 4x4 (if equipped)
• Wait to Start (if equipped)

Included Sensors

• Water Temperature: 1/8" NPT sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces Ford/GM style speedometer cables with a 10 ft harness. Needs about 5" clearance for installation.
• Bushings: Comes with a variety of NPT bushings for easy setup.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

Setting up your Dakota Digital instruments is a breeze. You just need to mount the included pushbuttons in a spot that’s easy to reach. With a simple push, you can calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. Once you’re all set up, those same buttons give you access to all the cool data in the Digital Message Centers.

Fitment:

• Chevrolet Camaro 1968

So if you’re ready to bring your Camaro into the 21st century with a dash that’s as functional as it is stylish, the MHX system is a solid choice.
