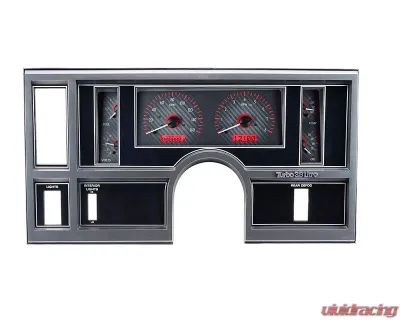

If you're looking to upgrade your Buick Regal's dashboard without the hassle of cutting it up, this is where it gets exciting. The MHX Series gives you six analog instruments, complete with twin message centers that fit right into the stock housing. For those of you with boosted T-Type cars or Grand Nationals, there's even a BIM expansion module and sender available separately to take things up a notch.

What really sets the MHX Series apart? Well, for starters, those fully lit needles and backlit faces are a game changer. You’ll appreciate the highly visible LCD message centers, especially when you're on the move. And let’s not forget about the tech under the hood—micro-controlled precision stepper motors and solid-state sensors deliver accuracy that you can trust. Plus, the user-customizable display feedback means you can tailor it to your needs. All of this is backed by a limited lifetime warranty, which is pretty much the gold standard for Dakota Digital instrumentation.

Manufactured right in Sioux Falls, South Dakota, the MHX Series is a breath of fresh air in the instrumentation world. For Grand National owners, the Boost gauge is conveniently displayed in the digital readout right beneath the Speedometer or Tachometer, making it easy to keep an eye on performance.

Just a heads up, you’ll need to use your factory bezel since it’s not included, and if you’re running a Grand National ignition system, make sure to grab the SEN-09-7 or a SGI-17 to get that tachometer connection sorted.

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (there’s an optional metric version that goes up to 195 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (metric version available: 40 - 120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

Lighting

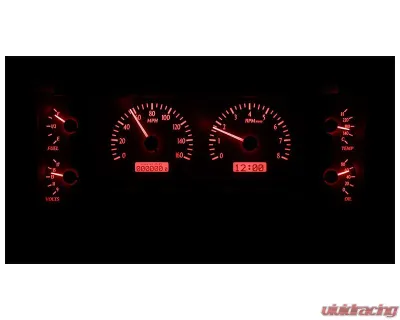

The backlit technology is a real favorite among performance enthusiasts. It ensures that every number, tick mark, and indicator is lit up just right, so you can get the info you need at a quick glance, even in low light.

Digital Message Centers

• Standard Displays:
  • Odometer (settable by the user, with a million-mile capacity)
  • Dual (A/B) Trip Meter (up to 9,999.9)
  • Clock (12-hour format)
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0-255 MPH/kmh)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi in 1 psi increments)
  • Water Temperature (100-300°F/40-150°C in 1°F/C increments)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD display for great visibility, even in bright sunlight.
  • LED backlighting for those night drives.

Built-in Indicators

• Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/On & Engaged, if equipped)
  • Gear Position (Optional GSS-3000 sensor needed)
  • 4 x 4 (if equipped)
  • Wait to Start (if equipped)
• Note: Not all OEM indicator functions will be replaced, so if you need more indicators, consider repurposing any unused ones.

Included Sensors

• Water Temperature: 1/8" NPT, ground-isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: This replaces Ford and GM style speedometer cables and comes with a 10 ft harness. Just ensure you have about 5" of clearance for installation.
• Bushings: Each kit includes various bushings for easy installation.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

Calibration is a breeze with the included pushbuttons. Mount them somewhere accessible, and you can easily calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. Once everything’s set up, those same buttons give you access to all the info in the Digital Message Centers.

Fitment:

• Buick Regal 1984-1987

So if you're ready to take your ride to the next level, the MHX-84B-REG-C-R Dakota Digital Carbon Fiber MHX System is a solid choice for your Buick from '84 to '87. Trust me, you won't regret it.
