If you’ve got a classic Pontiac A-body from 1970 to 72—like the T-37, Le Mans, Tempest, or the iconic GTO—you’re probably always on the lookout for ways to bring it into the modern age without losing that vintage charm. That’s where this complete six-gauge instrument system comes in. It’s not just a pretty face; it’s packed with features that make it a must-have for anyone who loves their ride.

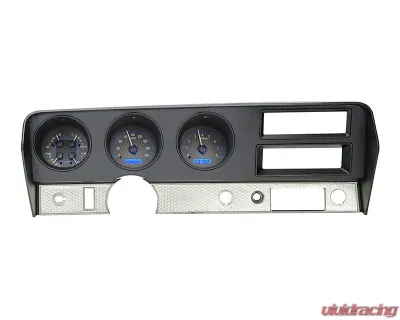

First off, let’s talk about the setup. This system fits right into your stock instrument bezel, so you don’t have to worry about any complicated modifications. You can choose between a sleek Black or Silver Alloy face, and the LED backlighting comes in blue, red, or white—whatever suits your style. And yes, new clear lenses are included, so you can ditch those old, foggy ones.

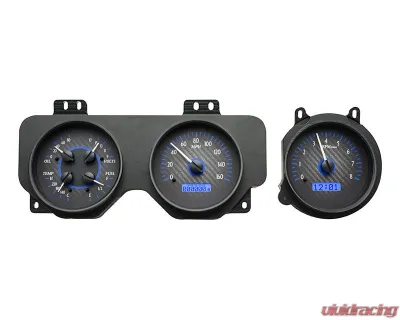

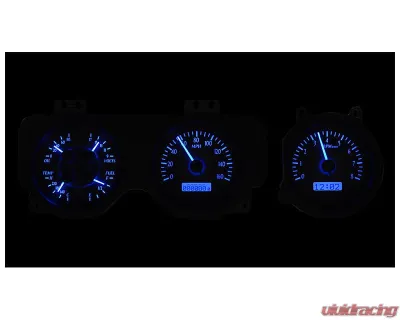

Now, what really sets the MHX Series apart are the details. The fully lit needles and backlit faces make it easy to read everything at a glance, even in bright sunlight. Those twin LCD message centers? They’re not just there for show; they provide real-time data that helps you keep an eye on what’s going on under the hood. And let’s not forget about the micro-controlled precision stepper motors and solid-state sensors—they give you accuracy you can trust. Plus, you can customize the display feedback to fit your needs.

One of the best parts? Dakota Digital backs this system with a limited lifetime warranty. That’s not something you see every day, and it really speaks to the quality of their products. Everything is engineered and manufactured in Sioux Falls, South Dakota, so you know you’re getting something that’s built to last.

Specifications

Analog Gauges

• Speedometer: 0 - 120 MPH (or 0-195 km/h if you prefer the metric version)
• Tachometer: Goes up to 8,000 RPM
• Oil Pressure: Measures from 0-80 psi
• Water Temperature: Ranges from 100-260°F (optional metric version 40-120°C)
• Fuel Level: Displays E, 1/4, 1/2, 3/4, and F
• Voltmeter: Shows 9-17 VDC

Digital Message Centers

• Standard Displays:
  • Odometer (settable, million-mile capability)
  • Dual Trip Meter (0-9,999.9)
  • 12-hour Clock
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 Mile Time and End Speed
  • High Speed and RPM Recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi)
  • Water Temperature (100-300°F / 40-150°C)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/Engaged)
• Gear Position (requires optional GSS-3000 sensor)
• 4x4 (when equipped)
• Wait to Start (when equipped)

Included Sensors

• Water Temperature: 1/8" NPT sensor with a 10 ft harness
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness
• Cable Driven Speed Sensor: Replaces Ford/GM style cables with a 10 ft harness

Control Box Dimensions

5.5" x 3.5" x 1"

Calibration

Setting everything up is a breeze with the included pushbuttons. You can calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge all at the push of a button. Once you’re set up, those same buttons give you access to a wealth of information right from the Digital Message Centers.

Fitment

• Pontiac GTO 1970-1972
• Pontiac Tempest 1970

So if you’re ready to give your classic Pontiac a modern touch while keeping it true to its roots, the Dakota Digital MHX Series is definitely worth checking out.
