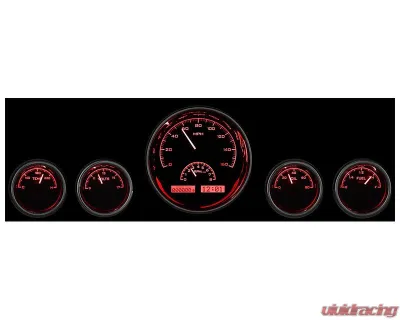

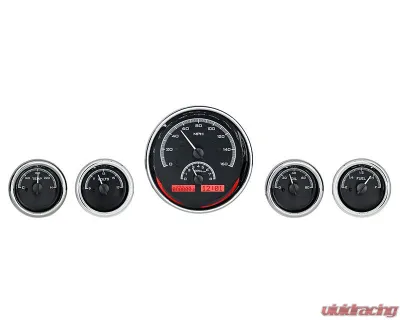

If you’ve ever admired the classic look of a '59 Chevy Impala, you’re in for a treat with this Dakota Digital 5 Gauge Round Black Alloy MHX System. It brings that vintage vibe right into the modern age. The main speedometer is a solid 6-1/4” overall (5-7/8” cutout), and the four smaller gauges come in at 3” (2-3/4” cutout). It’s a setup that's not just about looks; it’s about giving you the info you need in a way that feels fresh and functional.

What really sets this gauge system apart? Well, for starters, those needles are fully lit, and the gauge faces are backlit, making it easy to read everything at a glance, day or night. You’ll notice the LCD message centers—they’re bright and clear, so you can keep an eye on your stats without squinting. Inside, you’ve got micro-controlled precision stepper motors and solid-state sensors, which means accuracy is spot on. Plus, you can customize the display feedback to suit your style. And let’s not forget the unbeatable limited lifetime warranty; Dakota Digital really stands behind their products.

Everything is designed and manufactured right in Sioux Falls, South Dakota, so you know you’re getting something built with care. This isn’t just a gauge; it’s a game changer for anyone who wants a reliable and stylish way to keep tabs on their ride.

Specifications:

Analog Gauges

• Speedometer: 0 - 160 MPH (there’s a metric option too, 0 - 255 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (metric version available: 40 - 120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC
• Lighting: Each gauge is lit by a series of LEDs, so you can see the important stuff without any hassle.

Digital Message Centers

• Standard Displays:
  • Odometer (settable, up to a million miles)
  • Dual Trip Meter (0 - 9,999.9)
  • 12-hour Clock
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 Mile Time
  • 1/4 Mile End Speed
  • High-speed Recall
  • High RPM Recall
• Gauges:
  • Speedometer (0 - 255 MPH/km/h)
  • Tachometer (0 - 9,900 RPM)
  • Oil Pressure (0 - 100 psi in 1 psi increments)
  • Water Temperature (100 - 300°F/40 - 150°C in 1°F/C increments)
  • Voltmeter (9 - 17 VDC)
  • Fuel Level (0 - 99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight visibility.
  • LED backlighting for night use.

Built-in Indicators

• Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control
  • Gear Position (requires optional GSS-3000 sensor)
  • 4x4 (when equipped)
  • Wait to Start (when equipped)

Included Sensors

• Water Temperature: 1/8" NPT sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces GM-style speedometer cables with a 10 ft harness. Needs about 5" clearance.
• Bushings: Comes with various NPT bushings for easy installation.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

• Push Button: Super easy to program and operate. Just mount the included buttons where you can easily reach them, and you’re good to go!

This Dakota Digital gauge system isn’t just about looking good; it’s about giving you the tools you need to keep your ride running smoothly. If you’re serious about your vehicle, this is the upgrade you’ve been waiting for.
