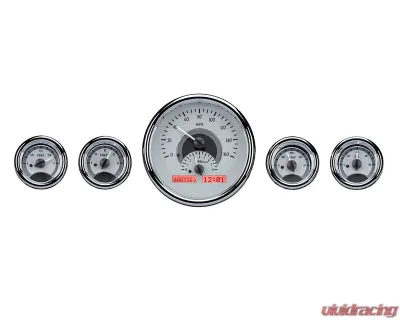

If you’re into classic rides, you’ve probably seen the iconic five-gauge setup made famous by the '59 Chevy Impala. It’s a design that’s stood the test of time, and this VHX Series really brings that classic vibe into the modern age. The main speedometer is a hefty 6-1/4" overall (with a 5-7/8" cutout), and the four smaller gauges are 3" (cutout size of 2-3/4"). It’s a look that grabs attention, no doubt.

Now, let’s talk features. The fully lit needles and backlit faces are a game-changer, especially with the bright LCD message centers. You can actually see what you need at a glance, whether you’re cruising down the highway or tearing up the backroads. But it’s not just about looks; under the hood, you’ve got micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can trust. Plus, the user-customizable display feedback means you can tweak it to fit your style. And yeah, it comes with a lifetime warranty, which is pretty sweet.

Everything is designed and built right in Sioux Falls, South Dakota, so you know you’re getting quality craftsmanship. This isn’t just another gauge set; it’s a revolution in how we think about instrumentation.

Specifications:

Analog Gauges

• Speedometer: 0 - 160 MPH (there's a metric version too, 0-255 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (or 40 - 120°C if you prefer metric)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

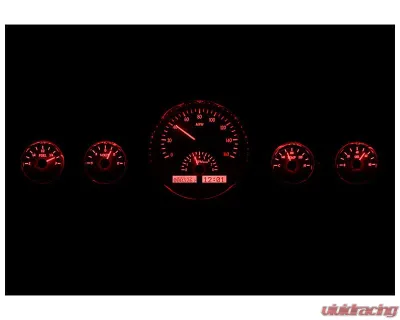

• Lighting: Each gauge is backlit with LED tech, so every number and indicator shines bright when you need it.

Digital Message Centers

• Standard Displays:
  • Odometer (settable, up to a million miles)
  • Dual Trip Meter (0 - 9,999.9)
  • Clock (12-hour format)
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 Mile Time
  • 1/4 Mile End Speed
  • High-Speed Recall
  • High RPM Recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi in 1 psi increments)
  • Water Temperature (100-300°F/40-150°C in 1°F/C increments)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight visibility.
  • LED backlit for night driving, keeping the look consistent.

Built-in Indicators

• Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control
  • Gear Position (requires optional GSS-3000 sensor)
  • 4x4 (if equipped)
  • Wait to Start (if equipped)
• **Note: Not all OEM indicator functions will be replaced. If you need more indicators, you might want to repurpose some unused ones.

Included Sensors

• Water Temperature: 1/8" NPT, ground-isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces GM-style speedometer cables with a 10 ft harness. Needs about 5" clearance.
• Bushings: Comes with various NPT and metric bushings for easy installation.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

• Push Button: Easy to operate with pushbuttons for calibration and accessing info in the Digital Message Centers. Just mount them where you can reach them.

So, if you’re looking to upgrade your gauge game, this Dakota Digital 5 Gauge Round Silver Alloy MHX System is a solid choice. It’s got the looks, the features, and the reliability you need to keep tabs on your ride.
