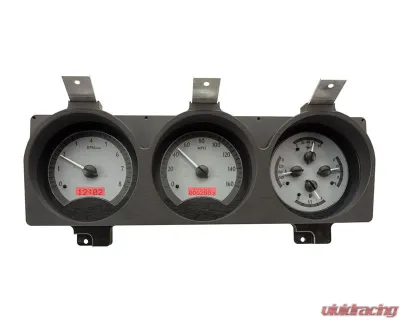

If you’re looking to breathe new life into your 1981-93 Full Size Truck or Ram Charger, this direct-fit instrument system is where it’s at. It’s not just a gauge upgrade; it’s a complete transformation of how you interact with your vehicle. You get six analog readouts that fit snugly into the three OEM gauge openings, along with two LCD message centers that keep you informed. Plus, the LED lighting means you can actually see what’s going on, even in the dark. And if you’re thinking about future upgrades, this system is designed for nearly unlimited expansion. It’s compatible with your existing front bezel, making the whole upgrade process smooth and seamless.

Now, let’s talk about what really sets the MHX Series apart. For starters, those fully lit needles and backlit faces are a game changer. You won’t be squinting to see your readings anymore. The LCD message centers are super clear, and the micro-controlled precision stepper motors ensure that you get accurate readings every time. The solid-state sensors? They’re not just a fancy term; they provide unmatched accuracy that you can rely on. And if you’re worried about longevity, Dakota Digital backs this system with a limited lifetime warranty, which is pretty much a standard in their instrumentation systems.

Everything is engineered and manufactured right in Sioux Falls, South Dakota, which is a nice touch. You’re not just getting a product; you’re getting a piece of craftsmanship that’s been thought out from the ground up.

Specifications:

• Analog Gauges:
  • Speedometer: 0 - 120 MPH (there’s a metric version if you need it, too, going up to 195 km/h).
  • Tachometer: Ranges from 0-8,000 RPM.
  • Oil Pressure: Monitors from 0-80 psi.
  • Water Temperature: Tracks from 100-260°F (or 40-120°C for the metric folks).
  • Fuel Level: Shows E, 1/4, 1/2, 3/4, and F.
  • Voltmeter: Reads from 9-17 VDC.
• Digital Message Centers:
  • Standard Displays:
    • Odometer (one-time user settable, million-mile capacity).
    • Dual trip meter (0-9,999.9).
    • 12-hour clock.
  • Performance Meters:
    • 0-60 MPH timer.
    • 1/4 mile time and end speed (trap speed).
    • High-speed and high RPM recall.
  • Gauges:
    • Speedometer (0-255 MPH/km/h).
    • Tachometer (0-9,900 RPM).
    • Oil Pressure (0-100 psi in 1 psi increments).
    • Water Temperature (100-300°F/40-150°C in 1°F/C increments).
    • Voltmeter (9-17 VDC).
    • Fuel Level (0-99% full).

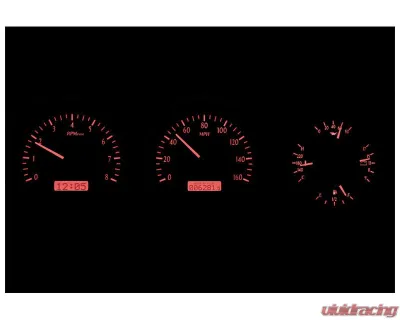

  • Lighting:
    • Auto-contrasting LCD display for bright sunlight visibility.
    • LED backlighting for night use.
• Included Sensors:
  • Water Temperature: Comes with a 1/8" NPT, ground-isolated sensor and a 10 ft harness.
  • Oil Pressure: Features a 1/8" NPT solid-state sensor with a 10 ft harness.
  • Cable Driven Speed Sensor/Generator: Replaces Ford/GM style speedometer cables and needs about 5" clearance.
  • Bushings: Includes various sizes to fit your needs.
  • Control Box Dimensions: 5.5" x 3.5" x 1".
• Calibration:
  • Easy pushbutton setup for calibrating your speedometer and accessing all the info in the message centers.

Just a heads up, the bezel isn’t included, but you can use your OEM or reproduction style bezel. If you’re looking to upgrade your ride, this Dakota Digital system is definitely worth considering.
