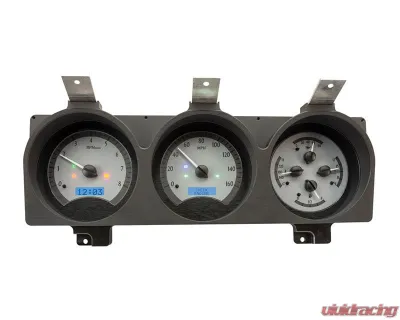

If you're looking to breathe new life into your 1981-93 Full Size Truck or Ram Charger, this direct-fit instrument system is a game changer. It slots right into the three OEM gauge openings, giving you six analog readouts that not only look sharp but also deliver the kind of performance you need on the road. With two LCD message centers, LED lighting, and the potential for endless expansion, this setup is all about making your ride as functional as it is stylish.

One of the best parts? You can reuse your existing front bezel, so the upgrade feels seamless. Whether you’re keeping your stock drivetrain or going for a full-on conversion, the speedometer is flexible enough to work with mechanical setups or a pre-existing VSS. That means you won’t have to stress about compatibility—it just works.

The MHX Series stands out from the crowd with features that make a real difference. You’ll notice the fully lit needles and backlit faces right away, but it’s the tech under the hood that really sets it apart. We’re talking micro-controlled precision stepper motors and solid-state sensors that provide unmatched accuracy. Plus, the user-customizable display feedback means you can set it up just the way you like it. And let’s not forget the limited lifetime warranty—Dakota Digital has your back for the long haul.

Everything is engineered and manufactured right here in Sioux Falls, South Dakota, and it shows. The MHX Series has really turned the instrumentation game on its head!

Specifications:

• Analog Gauges:
  • Speedometer: 0 -120 MPH (or 0-195 km/h if you prefer metric)
  • Tachometer: 0- 8,000 RPM
  • Oil Pressure: 0- 80 psi
  • Water Temperature: 100- 260°F (optional metric version 40-120°C)
  • Fuel Level: E, 1/4, 1/2, 3/4, F
  • Voltmeter: 9- 17 VDC

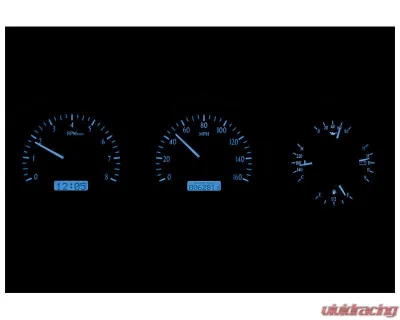

• Lighting: The backlit technology is a must-have for performance instrumentation. You’ll appreciate the precise lighting that helps you see exactly what you need at a glance, whether it’s day or night.

Digital Message Centers:

• Standard Displays:
  • Odometer (settable, million-mile capability)
  • Dual (A/B) Trip Meter (0- 9,999.9)
  • Clock (12-hour format)
• Performance Meters:
  • 0- 60 MPH Timer (0- 100 km/h)
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0- 255 MPH/km/h)
  • Tachometer (0- 9,900 RPM)
  • Oil Pressure (0-100 psi in 1 psi increments)
  • Water Temperature (100- 300°F/ 40- 150°C in 1°F/C increments)
  • Voltmeter (9- 17 VDC)
  • Fuel Level (0-99% full)
• Lighting: You’ll love the auto-contrasting LCD display that’s easy to read in bright sunlight, and at night, the LED backlighting matches the look perfectly.

Built-in Indicators:

• Turn Signals (Left/ Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/ On & Engaged when equipped)
• Gear Position (Optional GSS-3000 sensor required)
• 4 x 4 (when equipped)
• Wait to Start (when equipped)

Just a heads up—some OEM indicator functions won’t be replaced, but you can repurpose any unused indicators to fit your needs.

Included Sensors:

• Water Temperature: Comes with a 1/8" NPT, ground-isolated sensor and a 10 ft harness.
• Oil Pressure: Solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/ Generator: This replaces Ford and/or GM style speedometer cables and needs about 5" clearance. If you need to relocate the pulse generator, there's a part available (sold separately) for that.
• Bushings: The kit includes various bushings for easy installation.

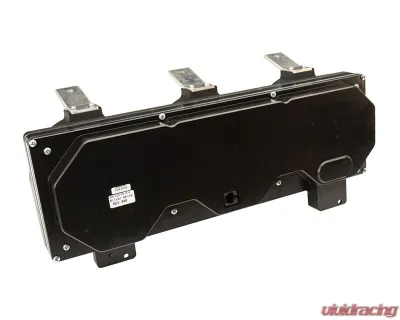

• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration:

• Pushbutton: Setting up your Dakota Digital instruments is easy—just mount the included pushbuttons where you can reach them. They’ll help you calibrate the speedometer, set cylinder counts, and adjust the fuel level gauge. Once you’re set up, these buttons also give you access to all the info in the Digital Message Centers.

So, if you’re ready to upgrade your ride with some serious tech that looks good and performs even better, the MHX-81D-PU-S-B Dakota Digital 3 Gauge Silver Alloy MHX System is worth checking out.
