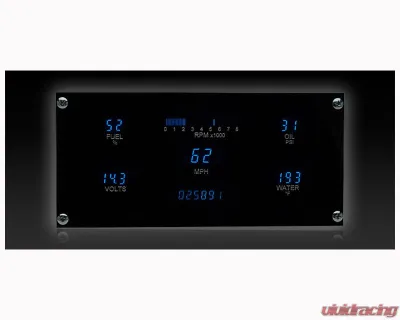

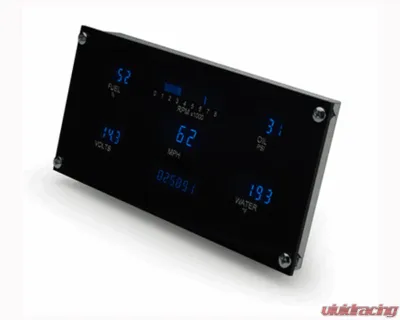

Dakota Digital MFD3-1007-Z Instrument System

Upgrade your ride with the Dakota Digital MFD3-1007-Z instrument system, designed specifically for classic vehicles looking to blend vintage style with modern technology. This advanced gauge system is a perfect fit for enthusiasts who want to enhance their Chevrolet Camaro or Chevrolet Nova from 1967-1969, providing not only a sleek look but also a wealth of information at your fingertips.

Why Choose the MFD3-1007-Z?

The MFD3-1007-Z features high-brightness vacuum fluorescent displays that ensure visibility in any lighting condition. Say goodbye to the old, dim gauges and enjoy a lifetime of trouble-free use with increased accuracy. Whether you're cruising down the highway or tearing up the track, this system keeps you informed about your vehicle's performance.

Fitment

• Compatible with 1967-1969 Chevrolet Camaro
• Compatible with 1967-1969 Chevrolet Nova

Key Features

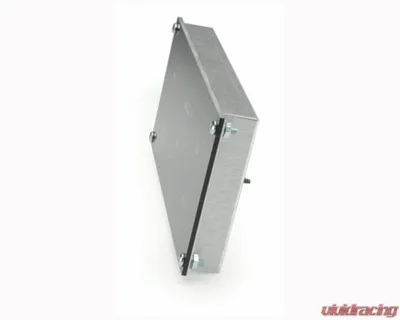

• Unit Dimensions: 3.8" x 8.1" W
• Minimum Viewing Area: 3" x 7" W

Specifications

• Digital Gauges:
  • Speedometer: 0 - 255 MPH (optional metric version 0-255 km/h)
  • Tachometer: 0 - 17,500 RPM
  • Oil Pressure: 0 - 99 psi
  • Water Temperature: 0 - 300°F (optional metric version 0-150°C)
  • Fuel Level: 0 - 99%
  • Voltmeter: 8 - 17 VDC
  • Standard Colors: Blue or Teal
• Digital Message Centers:
  • Odometer: One-time user settable, Million Mile
  • Dual (A/B) Trip Meter: 0 - 9,999.9
  • Performance Meters: 0-60 MPH Timer, 1/4 mile time, High-speed recall, High RPM recall
• Built-in Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (when equipped)
  • Gear Position (optional GSS-3000 sensor required)
  • 4x4 (when equipped)
  • Wait to Start (when equipped)

Included Sensors

• Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
• Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
• Cable Driven Speed Sensor/Generator: Replaces GM style speedometer cables with a 10 ft harness
• Bushings: Includes 1/8" to 1/4", 3/8", and 1/2" NPT bushings

Calibration Made Easy

Setting up your Dakota Digital MFD3-1007-Z is a breeze. The system is programmed and operated with the push of a button. Simply mount the included buttons in an accessible location to calibrate your speedometer and set the cylinder count and fuel level gauge. Once configured, these buttons also provide access to a wealth of information through the Digital Message Centers.

Customer Feedback

One 1968 Camaro owner mentioned, “The Dakota Digital MFD3-1007-Z transformed my dash. The visibility is fantastic, and I love having all the performance metrics right in front of me. Installation was straightforward, and it fits perfectly.”

Whether you're a weekend warrior or a daily driver, the Dakota Digital MFD3-1007-Z is your go-to solution for upgrading your classic vehicle's instrumentation. Experience the perfect blend of nostalgia and innovation today!
