Dakota Digital MFD3-37C-Z Instrument System for 1937-38 Chevy

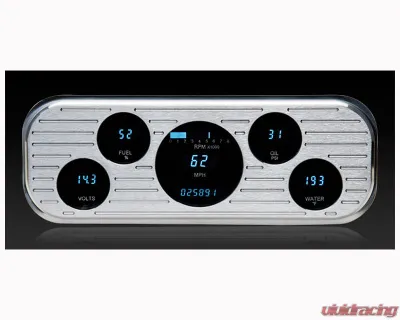

If you're looking to upgrade the instrumentation in your classic 1937-38 Chevy, the Dakota Digital MFD3-37C-Z is the perfect choice. This full 5 gauge instrument system combines modern technology with a classic look, ensuring your vintage ride not only performs well but also looks stunning. The high brightness vacuum fluorescent displays are designed for a lifetime of trouble-free use, offering increased accuracy and a range of features that will keep you informed on the road.

Fitment

The MFD3-37C-Z is specifically designed to fit 1937-38 Chevrolet vehicles, making it an ideal upgrade for owners who want to maintain that classic aesthetic while enhancing functionality. The included billet aluminum dash housing ensures a seamless fit and adds a touch of elegance to your dashboard.

Technical Specifications

• Digital Gauges:
  • Speedometer: 0 - 255 MPH (metric version available: 0-255 km/h)
  • Tachometer: 0 - 17,500 RPM
  • Oil Pressure: 0 - 99 psi
  • Water Temperature: 0 - 300°F (metric version available: 0-150°C)
  • Fuel Level: 0 - 99%
  • Voltmeter: 8 - 17 VDC
  • Standard Colors: Blue or Teal
• Digital Message Centers:
  • Standard Displays:
    • Odometer (One-time user settable, Million Mile)
    • Dual (A/B) Trip Meter (0 - 9,999.9)
  • Performance Meters:
    • 0-60 MPH Timer (0-100 km/h)
    • 1/4 Mile Time
    • 1/4 Mile End Speed (Trap Speed)
    • High-Speed Recall
    • High RPM Recall
• Built-in Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (when equipped)
  • Gear Position (Optional GSS-3000 sensor required)
  • 4x4 (when equipped)
  • Wait to Start (when equipped)

Included Sensors

• Water Temperature Sensor: 1/8" NPT, ground isolated sensor with a 10 ft harness
• Oil Pressure Sensor: 1/8" NPT solid-state sensor with a 10 ft harness
• Cable Driven Speed Sensor/Generator: Replaces GM-style speedometer cables with a 10 ft harness; requires 5" clearance for installation
• Bushings: 1/8" to 1/4", 3/8", and 1/2" NPT bushings included, along with bushings for 12mm and 16mm x 1.5 threads
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration Made Easy

Programming the Dakota Digital instruments is simple and user-friendly. The included push buttons allow you to calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge with ease. Once configured, these buttons also provide access to the wealth of information available in the Digital Message Centers.

Customer Feedback

Chevy owners have praised the MFD3-37C-Z for its stunning clarity and easy installation. One customer shared, "I installed this in my 1938 Chevy and it fits perfectly. The gauges are bright and easy to read, even in the sun. It really brings my dashboard to life!"

Upgrade your classic Chevy with the Dakota Digital MFD3-37C-Z and enjoy the perfect blend of vintage style and modern technology.
