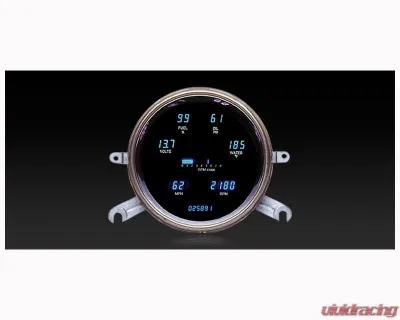

If you’re looking to breathe some modern life into your classic ride, the Dakota Digital Series III instrument system is a solid choice. This setup is packed with features that not only look great but also give you the kind of accuracy you want when you’re behind the wheel. Those high-brightness vacuum fluorescent displays? They’re built to last and provide a clear readout, even on the sunniest days.

This full 6-gauge instrument system is designed to fit right into the stock dash housing of your 1949-50 Chevy—no major modifications needed. Just keep in mind that the bezel isn’t included, but you can easily use your OEM or a reproduction style bezel to finish off the look.

Specifications:

• Digital Gauges:
  • Speedometer: 0 - 255 MPH (there's a metric version too, if you need it)
  • Tachometer: Goes from 0 to 17,500 RPM—perfect for those high-revving moments.
  • Oil Pressure: Reads from 0 to 99 psi, keeping you in the know about your engine health.
  • Water Temperature: 0 to 300°F (metric version available as well).
  • Fuel Level: Shows you from 0 to 99% so you can keep an eye on that gas gauge.
  • Voltmeter: 8 to 17 VDC, ensuring your electrical system is in check.
• Digital Message Centers:
  • Odometer: Set it once, and it’s good for a million miles.
  • Dual Trip Meter: Track two trips up to 9,999.9 miles.
  • Performance Meters: 0-60 MPH timer, quarter-mile time, and end speed—ideal for those who like to push their rides.
• Built-in Indicators:
  • Includes turn signals, high beam, check engine, and more.
  • Keep in mind, not all OEM indicator functions are replaced, so you might want to repurpose some unused indicators if you need more.
• Included Sensors:
  • Water Temperature and Oil Pressure sensors come with a 10 ft harness.
  • Cable Driven Speed Sensor: This replaces GM style speedometer cables and needs about 5 inches of clearance.
  • Comes with all the necessary bushings for easy installation.
• Control Box Dimensions: 5.5" x 3.5" x 1", so it won't take up much room under the dash.

Calibration:

Setting this up is a breeze with the included push buttons. Just mount them somewhere handy, and you can calibrate the speedometer, set your cylinder count, and adjust the fuel gauge with just a few clicks. Once you’ve got it dialed in, those same buttons give you access to all the info in the Digital Message Centers.

Fitment:

• Chevrolet Fleetline 1949-1950
• Chevrolet Styleline Deluxe 1949-1950
• Chevrolet Styleline Special 1949-1950

So if you’re ready to upgrade your classic Chevy’s dash, the Dakota Digital Series III is a smart choice that brings a bit of modern flair without losing that vintage charm.
