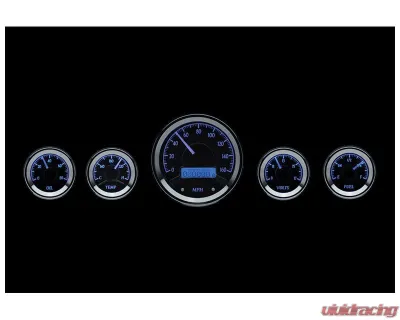

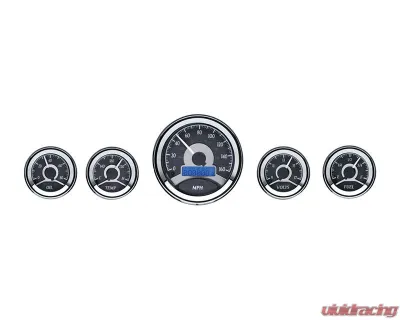

Dakota Digital MHX-1050-K-B Gauge Kit Overview

If you're looking to upgrade your dashboard with precision and style, the Dakota Digital MHX-1050-K-B gauge kit is an excellent choice for your classic car or truck. This 5-gauge round kit is designed to fit seamlessly into a variety of vehicles, offering both functionality and a modern aesthetic that enhances your driving experience.

Key Features

• Speedometer (with integrated digital Tachometer)
• Oil Pressure gauge
• Water Temperature gauge
• Fuel Level gauge
• Voltmeter

Dimensions

• Speedometer and Tachometer: Cutout 3-3/8" (3.55" OD)
• Oil Pressure, Water Temperature, Fuel Level, Volts: Cutout 2-1/16" (2.225" OD)

Note: This kit is not available as individual gauges, ensuring you get a complete set for your vehicle.

Specifications

Analog Gauges

• Speedometer: 0 - 160 MPH (optional metric version 0-255 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (optional metric version 40 - 120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

Lighting

The MHX-1050-K-B features advanced backlit technology, providing clear visibility of all gauges at a glance. Each gauge is illuminated by a series of LEDs behind the face, ensuring you can read your critical stats even in low-light conditions.

Digital Message Center

• Standard Displays:
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0 - 9,999.9)
  • Clock (12 hour)
• Performance Meters:
  • 0 - 60 MPH Timer
  • 1/4 mile time and end speed (trap speed)
  • High-speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0 - 255 MPH/km/h)
  • Tachometer (0 - 9,900 RPM)
  • Oil Pressure (0 - 100 psi)
  • Water Temperature (100 - 300°F)
  • Voltmeter (9 - 17 VDC)
  • Fuel Level (0 - 99% full)
• Lighting:
  • Auto-contrasting LCD display for optimal visibility in bright sunlight.
  • LED backlighting for a consistent look at night.

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (when equipped)
• Gear Position (requires optional GSS-3000 sensor)
• 4x4 (when equipped)
• Wait to Start (when equipped)

Included Sensors

• Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces GM-style speedometer cables with a 10 ft harness. Requires approximately 5" clearance.
• Bushings: Includes 1/8" to 1/4", 3/8", and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration Made Easy

The Dakota Digital instruments are user-friendly, programmed with a simple push button. This allows you to easily calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. Once set up, these buttons also provide access to a wealth of information in the Digital Message Centers.

Real-World Fitment

Perfect for enthusiasts who want to enhance their classic Chevy or Ford models, the MHX-1050-K-B gauge kit integrates beautifully into your vehicle's dashboard. Owners of 1967-1972 Chevy C10s and 1966-1977 Ford Broncos have reported a flawless fit and improved visibility, making it a great choice for those looking to restore or upgrade their ride.

Upgrade your vehicle's instrumentation with the Dakota Digital MHX-1050-K-B gauge kit, and enjoy a blend of classic style and modern performance metrics!
