Dakota Digital MHX Gauge Kits

If you’re looking to upgrade your ride’s gauge setup, the Dakota Digital MHX kits are worth a look. These aren’t just your run-of-the-mill gauges; they’re designed for those who appreciate precision and style in their dashboard. Let’s break it down.

MHX-1050: 5 Gauge Round Kit

• Speedometer (with digital tachometer)
• Oil Pressure
• Water Temperature
• Fuel Level
• Volts

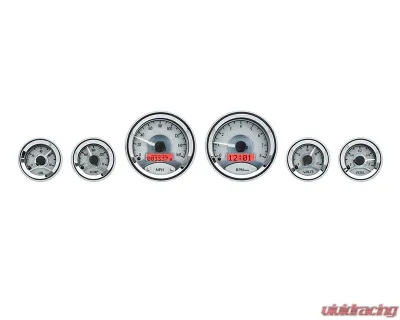

MHX-1060: 6 Gauge Round Kit

• Speedometer
• Tachometer
• Oil Pressure
• Water Temperature
• Fuel Level
• Volts

Dimensions

• Speedometer and Tachometer: Cutout 3-3/8" (3.55" OD)
• Oil Pressure, Water Temperature, Fuel Level, Volts: Cutout 2-1/16" (2.225" OD)

Just a heads up, you can’t snag these gauges individually—they come as a complete set.

Specifications

Analog Gauges

• Speedometer: 0 - 160 MPH (or metric version up to 255 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (or metric version 40 - 120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

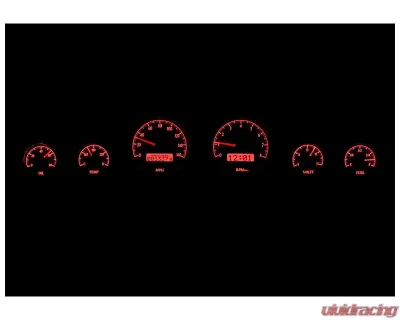

• Lighting: Each gauge is backlit with LEDs, so you can easily see what you need, even in low light.

Digital Message Centers

• Standard Displays:
  • Odometer (settable up to a million miles)
  • Dual Trip Meter (0 - 9,999.9)
  • Clock (12-hour format)
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 Mile Time
  • 1/4 Mile End Speed
  • High-Speed Recall
  • High RPM Recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi)
  • Water Temperature (100-300°F/40-150°C)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD for bright sunlight visibility.
  • LED backlighting for nighttime clarity.

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (if equipped)
• Gear Position (requires optional GSS-3000 sensor)
• 4x4 Indicator (if equipped)
• Wait to Start (if equipped)

Keep in mind, not all OEM indicator functions will be replaced, so if you need extra indicators, think about repurposing any unused ones.

Included Sensors

• Water Temperature: 1/8" NPT sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor: Replaces GM-style speedometer cables with a 10 ft harness. It needs about 5" clearance for installation, but you can get a relocation part if needed.
• Bushings: Comes with various NPT bushings to fit your setup.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

Calibration is a breeze with the included push buttons. Just mount them somewhere handy and you’re good to go. They let you set up your speedometer, cylinder count, and fuel gauge. Once you’ve got everything dialed in, those same buttons give you access to all the info in the Digital Message Centers.

So, if you're ready to take your dashboard game to the next level, the Dakota Digital MHX kits are a solid choice. They’re built for performance and look great while doing it.
