Dakota Digital MHX-37C-K-R Instrument System

If you’re looking to upgrade the gauge cluster in your classic ride, the Dakota Digital MHX-37C-K-R is your go-to solution. This direct-fit instrument system is meticulously engineered to seamlessly fit the stock dash opening of your vehicle, ensuring that installation is as straightforward as it gets. Whether you're cruising in a Chevrolet C10 or a Ford F-Series, this system will enhance your driving experience with its modern technology while maintaining that classic aesthetic.

Fitment and Installation

This instrument system is designed specifically for certain models, so you can expect a perfect fit without any hassle. Just be aware that if you’re considering using it in a vehicle it wasn’t intended for, you might face some mounting challenges. Always aim to modify the dash or surrounding housing rather than the MHX system itself to keep your warranty intact.

Dimensions

• Cutout dimensions: 4.12" x 12"
• Overall panel dimensions: 4.5" x 12.20"

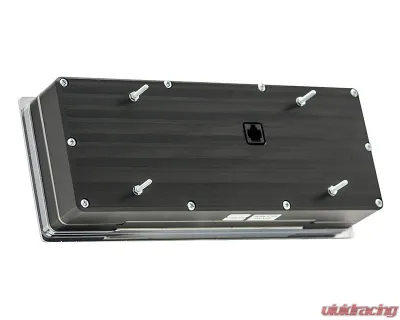

• Depth: Typically mirrors the stock gauge cluster, ranging from 1.5" to 2.5"

Specifications

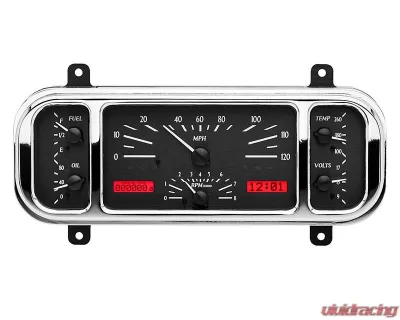

Analog Gauges

• Speedometer: 0 - 120 MPH (optional metric version 0 - 195 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (optional metric version 40 - 120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

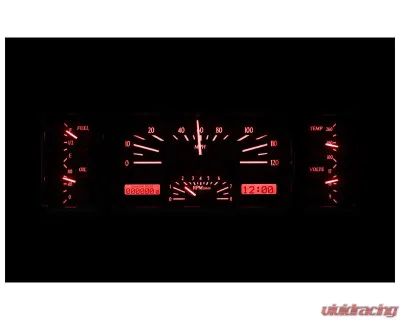

• Lighting: Each gauge is backlit with LEDs for optimal visibility at a glance.

Digital Message Centers

• Standard Displays:
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0 - 9,999.9)
  • Clock (12 hour)
• Performance Meters:
  • 0 - 60 MPH Timer
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0 - 255 MPH/km/h)
  • Tachometer (0 - 9,900 RPM)
  • Oil Pressure (0 - 100 psi)
  • Water Temperature (100 - 300°F)
  • Voltmeter (9 - 17 VDC)
  • Fuel Level (0 - 99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight visibility.
  • LED backlit for nighttime use.

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (when equipped)
• Gear Position (requires optional GSS-3000 sensor)
• 4x4 (when equipped)
• Wait to Start (when equipped)

Included Sensors

• Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces Ford and/or GM style speedometer cables with a 10 ft harness.
• Bushings: Includes various NPT bushings and thread sizes for compatibility.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

Setting up your Dakota Digital MHX-37C-K-R is a breeze with the included pushbuttons. These allow you to calibrate your speedometer, set cylinder counts, and adjust the fuel level gauge with ease. Once configured, you can access a wealth of information through the Digital Message Centers, making this system not just an upgrade, but a true enhancement to your driving experience.

Customer Feedback

Owners of classic Chevrolet trucks have raved about the clarity of the gauges and how well they integrate with the original dash layout. One 1972 C10 owner shared, "The Dakota Digital gauges fit perfectly and look amazing. It's like having a brand new truck inside!"
