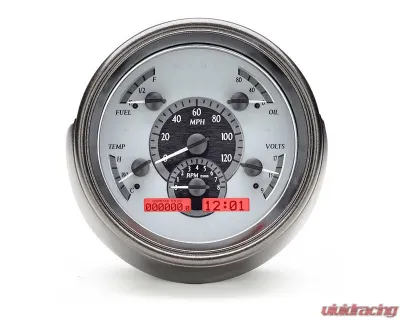

If you're looking to upgrade your classic ride's instrumentation without tearing into the original dash, the MHX-51F is a solid choice. This setup leverages your stock gauge bezel, so installation is pretty straightforward. You won’t have to worry about cutting into that vintage metal, which is a big plus for those of us who appreciate the history of our vehicles. Plus, if you want to add a bit more flair, you can grab the VLC-51F separately—it's a matching clock/message center that comes in a slick chrome-plated, machined aluminum body.

Now, let’s talk about what really sets the MHX Series apart from the old-school gauges. First off, those fully lit needles and backlit faces make it easy to read everything at a glance, even in low light. The LCD message center is super visible, too. But it’s not just about looks; the tech inside is impressive. The micro-controlled precision stepper motors and solid-state sensors deliver accuracy that you can rely on. You can even customize the display feedback to suit your preferences. And let’s not forget the limited lifetime warranty—Dakota Digital really stands behind their products, which is reassuring.

Engineered and manufactured right in Sioux Falls, South Dakota, this series has really changed the game in the instrumentation world. You’re not just getting gauges; you’re getting a whole new level of performance and reliability.

Specifications:

• Analog Gauges
  • Speedometer: 0 - 120 MPH (or 0-195 km/h for the metric version)
  • Tachometer: 0 - 8,000 RPM
  • Oil Pressure: 0 - 80 psi
  • Water Temperature: 100 - 260°F (optional metric version 40-120°C)
  • Fuel Level: E, 1/4, 1/2, 3/4, F
  • Voltmeter: 9 - 17 VDC

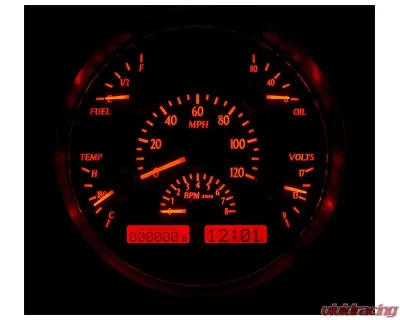

  • Lighting: Backlit technology ensures you can see everything clearly, thanks to a series of LEDs lighting up the gauge face.
• Digital Message Centers
  • Standard Displays:
    • Odometer: One-time user settable, Million Mile
    • Dual (A/B) Trip Meter: 0 - 9,999.9
    • Clock: 12 hour
  • Performance Meters:
    • 0-60 MPH Timer (0-100 km/h)
    • 1/4 mile time
    • 1/4 mile end speed (trap speed)
    • High speed recall
    • High RPM recall
  • Gauges:
    • Speedometer: 0-255 MPH/km/h
    • Tachometer: 0-9,900 RPM
    • Oil Pressure: 0-100 psi in 1 psi increments
    • Water Temperature: 100-300°F/40-150°C in 1°F/C increments
    • Voltmeter: 9-17 VDC
    • Fuel Level: 0-99% full
  • Lighting:
    • Auto-contrasting LCD display for visibility in bright sunlight.
    • LED backlighting at night complements the overall look.
• Built-in Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/On & Engaged when equipped)
  • Gear Position (Optional GSS-3000 sensor required)
  • 4x4 (when equipped)
  • Wait to Start (when equipped)
• Included Sensors:
  • Water Temperature: 1/8" NPT, ground-isolated sensor with a 10 ft harness.
  • Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
  • Cable Driven Speed Sensor/Generator: Replaces Ford/GM style speedometer cables with a 10 ft harness. Requires about 5" clearance between the cable drive output and any obstruction.
  • Bushings: Each kit includes various bushings to fit different thread sizes.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration is a breeze with the included pushbuttons. Just mount them where you can easily reach them, and you’ll be able to set your speedometer, cylinder count, and fuel level gauge in no time. Once you’re all set up, those same buttons give you access to a ton of information from the Digital Message Centers.

In short, the MHX-51F-S-R Dakota Digital system isn’t just about looks; it’s about functionality, reliability, and a touch of modern tech for your classic vehicle. If you’re serious about your ride, this is a solid investment.
