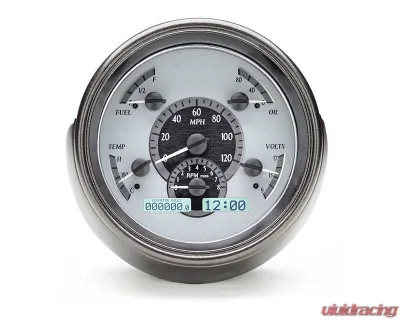

If you're looking to upgrade your ride's gauge setup without tearing into your classic dash, the MHX-51F is a solid choice. It fits right into the stock gauge bezel, making installation a breeze. No need to slice into that vintage tin—just use the original mounting points, and you’re good to go. Plus, if you want to take it a step further, you can grab the VLC-51F separately. It’s a slick clock/message center that comes in a chrome-plated, machined aluminum body, adding a nice touch to your interior.

Now, let’s talk about what really sets the MHX Series apart from the old-school gauges. First off, those fully lit needles and backlit faces? They’re not just for show. You’ll appreciate the visibility when you're burning rubber or cruising down the highway at night. The LCD message center is bright and easy to read, making sure you get all the important info at a glance.

But it’s not just about looks. Under the hood, it’s packed with tech that you won’t find in your average gauge set. The micro-controlled precision stepper motors and solid-state sensors ensure you get unparalleled accuracy. Plus, you can customize the display feedback to suit your style. And let’s not forget the unbeatable limited lifetime warranty that Dakota Digital is known for—this is gear you can trust.

Everything is engineered and manufactured in Sioux Falls, South Dakota, so you know it’s built to last. This isn’t just an upgrade; it’s a revolution in instrumentation!

Specifications:

• Analog Gauges:
  • Speedometer: 0 - 120 MPH (or 0 - 195 km/h if you prefer the metric version)
  • Tachometer: 0 - 8,000 RPM
  • Oil Pressure: 0 - 80 psi
  • Water Temperature: 100 - 260°F (or 40 - 120°C)
  • Fuel Level: E, 1/4, 1/2, 3/4, F
  • Voltmeter: 9 - 17 VDC
  • Lighting: Each gauge is backlit with LEDs, ensuring you can see everything clearly, even in the darkest conditions.
• Digital Message Centers:
  • Standard Displays:
    • Odometer (settable, million-mile capability)
    • Dual Trip Meter (0 - 9,999.9)
    • 12-hour Clock
  • Performance Meters:
    • 0-60 MPH Timer
    • 1/4 Mile Time
    • 1/4 Mile End Speed
    • High Speed Recall
    • High RPM Recall
  • Gauges:
    • Speedometer (0 - 255 MPH/km/h)
    • Tachometer (0 - 9,900 RPM)
    • Oil Pressure (0 - 100 psi)
    • Water Temperature (100 - 300°F)
    • Voltmeter (9 - 17 VDC)
    • Fuel Level (0 - 99% full)
  • Lighting:
    • Auto-contrasting LCD display for bright sunlight visibility
    • LED backlighting for nighttime use
• Built-in Indicators:
  • Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Gear Position (optional sensor required), 4x4 (when equipped), Wait to Start (when equipped).
• Included Sensors:
  • Water Temperature: 1/8" NPT sensor with a 10 ft harness
  • Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness
  • Cable Driven Speed Sensor/Generator: Replaces Ford/GM speedometer cables
  • Bushings: Comes with various NPT sizes and 12mm/16mm options
  • Control Box Dimensions: 5.5" x 3.5" x 1"
• Calibration:
  • Easy push-button calibration for speedometer, cylinder count, and fuel level gauge. Access all the cool features in the Digital Message Centers with just a press!

So if you want a gauge system that’s not just functional but also looks great and gives you all the info you need, the MHX-51F is worth checking out. It’s a real game changer!
