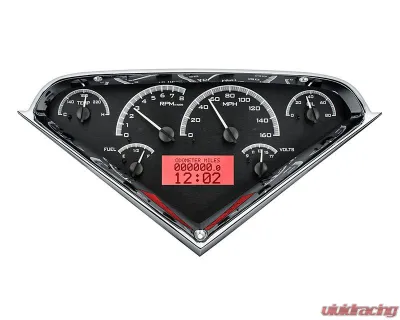

If you're diving into the world of classic Chevy pickups, you probably know that the V-shaped gauge cluster from the 1955-59 models is a real standout. It’s got that vintage vibe that everyone loves, and it's found a home in a ton of custom builds. This gauge setup is designed to fit right into your stock or aftermarket bezel—just keep in mind that the bezel itself is sold separately.

What sets the MHX Series apart? Well, for starters, it’s got a slick LCD message center that can show two readings at once, making it super handy when you're on the road. The analog gauges are fully lit, so you can easily see everything at a glance, even in low light. Each gauge is powered by micro-controlled precision stepper motors and solid-state sensors, which means you’re getting accuracy that’s hard to beat. Plus, the display feedback is customizable, so you can tweak things to your liking.

Manufactured right in Sioux Falls, South Dakota, this setup is not just about looks; it’s built to last. Dakota Digital backs their products with a limited lifetime warranty, which is pretty much the gold standard in the industry. Let’s get into the nitty-gritty of what you can expect:

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (or 0 - 195 km/h if you prefer metric)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (optional metric version 40 - 120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC
• Lighting: Each gauge is equipped with LEDs for precise lighting, so you can quickly see what you need when it counts.

Digital Message Centers

• Standard Displays:
  • Odometer (settable, million-mile capability)
  • Dual Trip Meter (0 - 9,999.9)
  • 12-hour Clock
• Performance Meters:
  • 0 - 60 MPH Timer
  • 1/4 Mile Time
  • 1/4 Mile End Speed
  • High Speed Recall
  • High RPM Recall
• Gauges:
  • Speedometer (up to 255 MPH/kmh)
  • Tachometer (up to 9,900 RPM)
  • Oil Pressure (0 - 100 psi)
  • Water Temperature (100 - 300°F/40 - 150°C)
  • Voltmeter (9 - 17 VDC)
  • Fuel Level (0 - 99% full)
• Lighting:
  • Auto-contrasting LCD for bright sunlight visibility.
  • LED backlighting for nighttime driving.

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (if equipped)
• Gear Position (requires optional GSS-3000 sensor)
• 4x4 Indicator (if equipped)
• Wait to Start (if equipped)

Included Sensors

• Water Temperature: 1/8" NPT sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor: Replaces Ford/GM style speedometer cables; requires about 5" clearance.
• Bushings: Comes with a variety of bushings for different thread sizes.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

Setting this system up is a breeze. You’ll get pushbuttons that you can mount wherever is convenient. Use them to calibrate your speedometer and set the cylinder count, plus access all the cool info in the digital message centers. It’s all about making your life easier while you're enjoying that classic ride.

So, if you're looking to give your classic Chevy the instrumentation it deserves, this MHX Series setup has got you covered. It’s functional, stylish, and built to last—just like your truck!
