Upgrade Your 1955-59 Chevy Pickup with the Dakota Digital MHX-55C-PU-K-W Instrument Cluster

If you own a classic 1955-59 Chevy pickup, you know that the V-shaped cluster is iconic. Now, you can enhance your ride with the MHX-55C-PU-K-W from Dakota Digital, a state-of-the-art instrument cluster designed specifically for these beloved trucks. This upgrade not only maintains the vintage aesthetic but also brings modern functionality to your dashboard.

Why Choose the MHX-55C-PU-K-W?

The MHX series is engineered to fit seamlessly with either stock or aftermarket bezels (sold separately), making it a versatile choice for your restoration or custom project. At the heart of this cluster is a large LCD message center that can display two readings simultaneously, surrounded by six dedicated analog instruments. Whether you're cruising down the highway or tackling a tough job site, you'll appreciate the clarity and precision this setup offers.

Key Features

• Fully Lit Needles and Backlit Faces: Enjoy enhanced visibility with bright, backlit gauges that make it easy to read your vital stats at a glance, day or night.
• Precision Performance: The MHX series utilizes micro-controlled precision stepper motors and solid-state sensors for unmatched accuracy. You'll get real-time data you can trust.
• User-Customizable Display: Tailor the display feedback to your liking, ensuring you get the information you need when you need it.
• Lifetime Warranty: Dakota Digital stands behind their products with an unrivaled limited lifetime warranty, ensuring your investment is protected.

Specifications

• Analog Gauges:
  • Speedometer: 0 - 120 MPH (optional metric version 0- 195 km/h)
  • Tachometer: 0 - 8,000 RPM
  • Oil Pressure: 0 - 80 psi
  • Water Temperature: 100 - 260°F (optional metric version 40 - 120°C)
  • Fuel Level: E, 1/4, 1/2, 3/4, F
  • Voltmeter: 9 - 17 VDC
• Digital Message Centers:
  • Odometer: One-time user settable, Million Mile
  • Dual (A/B) Trip Meter: 0 - 9,999.9
  • Clock: 12 hour
  • Performance Meters: 0-60 MPH Timer, 1/4 mile time, High speed recall
• Lighting:
  • Auto-contrasting LCD for bright sunlight visibility.
  • LED backlighting for night use.

Included Sensors

• Water Temperature Sensor: 1/8" NPT, ground isolated with a 10 ft harness.
• Oil Pressure Sensor: 1/8" NPT solid state with a 10 ft harness.
• Cable Driven Speed Sensor: Replaces OEM speedometer cables (requires 5" clearance).
• Control Box Dimensions: 5.5" x 3.5" x 1"

Installation Made Easy

Setting up the MHX-55C-PU-K-W is straightforward, thanks to the included pushbuttons for calibration. Mount these in an accessible spot, and you’ll be able to adjust your speedometer and fuel level gauge with ease. Once configured, these buttons also provide access to a wealth of information displayed on the digital message centers.

Final Thoughts

The Dakota Digital MHX-55C-PU-K-W is more than just an instrument cluster; it’s a fusion of classic design and modern technology that enhances your driving experience. Perfect for 1955-59 Chevy pickup owners who want to keep their vehicle's vintage charm while benefiting from the latest in instrumentation technology.

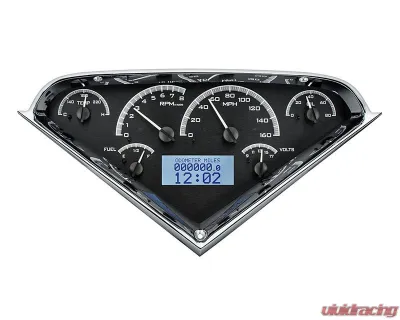

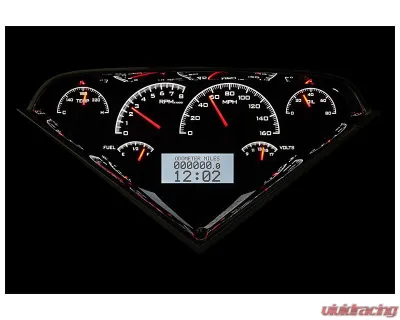

*Bezel not included; shown for visual/presentation purposes. System uses OEM or reproduction style bezel.
