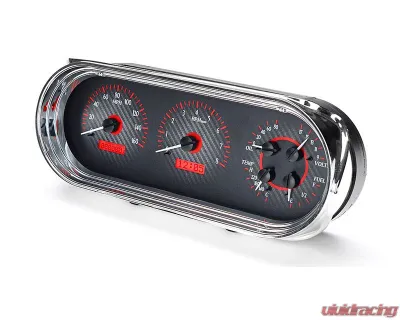

Hey there, fellow car enthusiasts! Let’s talk about the Dakota Digital MHX Series for the Chevy Nova—perfect for those who want to keep their classic ride looking sharp and performing even better. This isn’t just any instrument system; it’s a direct bolt-in setup that works with either an OEM or reproduction bezel (which you’ll need to grab separately if you don’t have one). It fits right into 1962 models with a little help from the 1963-65 bezel.

What really sets the MHX Series apart? Well, for starters, it’s got fully lit needles and backlit faces, so you can read everything at a glance, even in low light. The LCD message center is super clear and easy to read. But it’s not just about looks—there’s some serious tech under the hood. We’re talking micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can trust. Plus, you can customize the display feedback to suit your style, and it’s backed by a limited lifetime warranty, which is pretty solid in the world of instrumentation.

Everything is engineered and built right in Sioux Falls, South Dakota. This isn’t some mass-produced gadget; it’s designed by folks who know what they’re doing. Here’s a quick rundown of what you get:

Specifications:

Analog Gauges

• Speedometer: 0-120 MPH (or 0-195 km/h if you prefer metric)
• Tachometer: 0-8,000 RPM
• Oil Pressure: 0-80 psi
• Water Temperature: 100-260°F (or 40-120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9-17 VDC
• Lighting: Each gauge face is illuminated with LEDs, making it easy to see what you need, when you need it.

Digital Message Centers

• Standard Displays:
  • Odometer (settable, million-mile capability)
  • Dual trip meter (0-9,999.9)
  • 12-hour clock
• Performance Meters:
  • 0-60 MPH timer
  • 1/4 mile time
  • 1/4 mile end speed
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi)
  • Water Temperature (100-300°F/40-150°C)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD for bright sunlight visibility
  • LED backlit for nighttime driving

Built-in Indicators

• Turn signals (left/right)
• High beam
• Check engine light
• Parking brake
• Cruise control (if equipped)
• Gear position (requires optional sensor)
• 4x4 (if equipped)
• Wait to start (if equipped)

Not every OEM indicator will be replaced, so if you want more indicators, you may need to repurpose some of the unused ones.

Included Sensors

• Water Temperature: Comes with a 1/8" NPT sensor and 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor: Replaces Ford/GM style cables with a 10 ft harness. Just make sure you have about 5" of clearance.
• Bushings: Includes various bushings for easy installation.

Control Box Dimensions

5.5" x 3.5" x 1"

Calibration

Easy pushbutton calibration for speedometer settings, cylinder count, and fuel gauge. Just mount the buttons somewhere handy, and you’re good to go!

So, if you’re looking to upgrade your Nova’s instrumentation, the MHX Series is a solid choice. It’s got the looks, the tech, and the reliability you need to keep your ride running strong.
