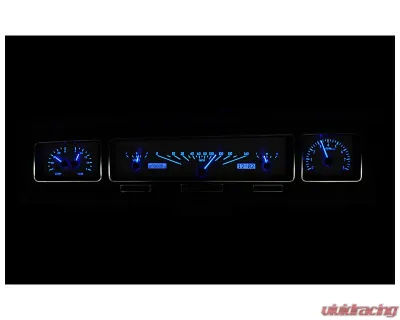

MHX Systems for 1968 Chevy Caprice and Impala

If you’re looking to upgrade your classic 1968 Chevy Caprice or Impala, the MHX Systems are a solid choice. These bad boys fit right into your stock instrument bezel without any need for modifications, which is a huge plus if you want to keep that original vibe.

What sets the MHX Series apart? For starters, you’ve got fully lit needles and backlit faces that make everything super easy to read, even in low light. The LCD message centers are a game changer, providing critical info at a glance. But it’s not just about looks—there's some serious tech under the hood. The micro-controlled precision stepper motors and solid-state sensors give you accuracy that you can rely on, whether you’re cruising down the highway or stuck in traffic.

One of the coolest features is how customizable the display feedback is. You can tweak it to suit your preferences, which is something you don’t usually find in traditional setups. Plus, you’re backed by a lifetime warranty, which Dakota Digital has made a name for. They really stand by their products.

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (or 0 - 195 km/h if you prefer metric)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (optional metric version 40 - 120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC
• Lighting: Each gauge is lit with LEDs, making it easy to see everything you need at a quick glance.

Digital Message Centers

• Standard Displays:
  • Odometer (one-time user settable, million-mile capability)
  • Dual (A/B) Trip Meter (0 - 9,999.9)
  • 12-hour Clock
• Performance Meters:
  • 0 - 60 MPH Timer
  • 1/4 mile time and trap speed
  • High speed and RPM recall
• Gauges:
  • Speedometer (0 - 255 MPH/km/h)
  • Tachometer (0 - 9,900 RPM)
  • Oil Pressure (0 - 100 psi in 1 psi increments)
  • Water Temperature (100 - 300°F / 40 - 150°C in 1°F/C increments)
  • Voltmeter (9 - 17 VDC)
  • Fuel Level (0 - 99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight visibility.
  • LED backlit for night driving.

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (if equipped)
• Gear Position (requires optional GSS-3000 sensor)
• 4x4 (if equipped)
• Wait to Start (if equipped)
• Note: Not all OEM indicator functions will be replaced. You might want to repurpose any unused indicators for your setup.

Included Sensors

• Water Temperature: 1/8" NPT, ground-isolated sensor with a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces Ford/GM style speedometer cables with a 10 ft harness. Needs about 5" clearance for installation.
• Bushings: Comes with various NPT bushings for easy installation.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

Setting everything up is a breeze. Just mount the included pushbuttons in a spot that’s easy to reach. You’ll use these to calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. Once you’re all set, those buttons will also let you dive into the wealth of info available in the Digital Message Centers.

Fitment:

• Chevrolet Caprice 1968
• Chevrolet Impala 1968

So if you’re ready to give your classic ride a modern twist, the MHX Series is worth checking out. It’s a great way to keep that vintage look while getting all the tech you need for today’s driving.
