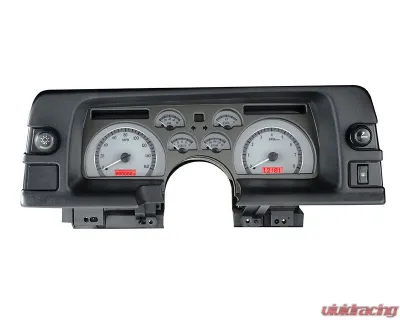

If you’re cruising around in a third-gen Camaro from 1990 to 1992, you know it’s got its quirks. It might not be the Mustang killer of its time, but with the right upgrades, it can handle like a dream and turn heads on the street. One of the best ways to breathe new life into that dated dash is with the MHX Series instrument system. This isn’t just a pretty face; it’s a direct bolt-in solution that makes use of your stock gauge bezel, so you won’t have to worry about a complicated install. Plus, it comes with new sending units and harnesses, making it a breeze to set up.

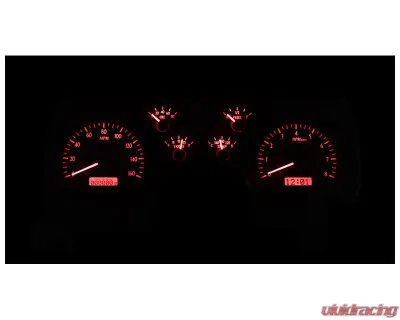

What really sets this system apart? For starters, you’ve got fully lit needles and backlit faces that make everything easy to read, day or night. The LCD message center is a game changer, giving you all the info you need at a glance. It’s not just about looks, though. Inside, you’ll find micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can trust. And if that wasn’t enough, Dakota Digital backs this with a limited lifetime warranty, so you know they stand behind their craftsmanship.

Everything is engineered and manufactured right here in Sioux Falls, South Dakota. It’s a solid piece of gear that’s truly revolutionizing the way we think about instrumentation. Just keep in mind, you’ll need to use your factory bezel, trim, and fascia for the full effect.

Specifications:

Analog Gauges

• Speedometer: 0-120 MPH (there’s a metric version too, if you’re into that)
• Tachometer: 0-8,000 RPM
• Oil Pressure: 0-80 psi
• Water Temperature: 100-260°F (metric option available)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9-17 VDC
• Lighting: LED backlighting ensures you can see everything clearly when it matters most.

Digital Message Centers

• Standard Displays:
  • Odometer (one-time user settable, million-mile capability)
  • Dual trip meter (0-9,999.9)
  • 12-hour clock
• Performance Meters:
  • 0-60 MPH timer
  • 1/4 mile time and trap speed
  • High speed and RPM recall
• Gauges:
  • Speedometer (up to 255 MPH/kmh)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi in 1 psi increments)
  • Water Temperature (100-300°F/40-150°C)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight visibility
  • LED backlighting for nighttime use

Built-in Indicators

• Turn signals, high beam, check engine, parking brake, and cruise control indicators
• Gear position (optional sensor required)
• 4x4 and wait-to-start indicators (when equipped)

Included Sensors

• Water Temperature: 1/8" NPT sensor with a 10 ft harness
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness
• Cable Driven Speed Sensor: Replaces Ford/GM style cables with a 10 ft harness
• Bushings: Comes with various NPT and metric bushings

Control Box Dimensions

5.5" x 3.5" x 1"

Calibration

Easy pushbutton calibration for speedometer, cylinder count, and fuel gauge. Just mount the included buttons where they’re easy to reach, and you’re set.

Fitment:

• Chevrolet Camaro 1990-1992

So, if you're looking to upgrade your Camaro's interior and want something that not only looks good but performs even better, the MHX Series is definitely worth checking out.
