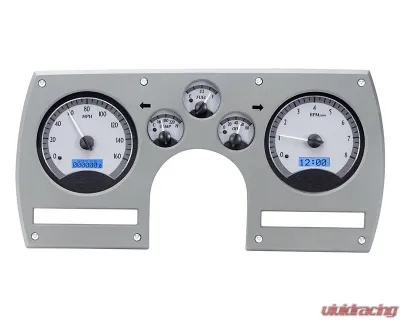

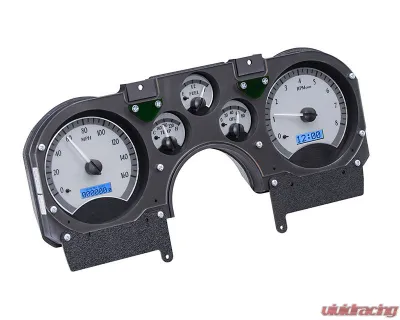

Back in 1982, the Chevy Camaro kicked off a new era, and Dakota Digital was right there, ready to elevate your driving experience. If you own a 1982-89 Camaro (sorry Firebird fans, this one's not for you), the MHX-82C-CAM is a game changer. It's designed to fit right in, no hassle. You get five analog gauges plus dual LCD message centers that keep you informed without distracting you from the road.

What really sets the MHX Series apart? For starters, those fully lit needles and backlit faces make it easy to read your gauges, even in bright sunlight. But it’s not just about looks. Inside, you'll find micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can trust. Plus, you can customize the display feedback to suit your style. And let’s not forget the peace of mind that comes with Dakota Digital's limited lifetime warranty—talk about a solid backing!

All of this is crafted right here in Sioux Falls, South Dakota. Dakota Digital has really shaken things up in the instrumentation world, and it shows. Just a heads up, this kit doesn’t fit the Berlinetta digital dash, so keep that in mind if you’re considering an upgrade.

Specifications:

• Analog Gauges:
  • Speedometer: 0-120 MPH (or 0-195 km/h if you prefer metric)
  • Tachometer: 0-8,000 RPM
  • Oil Pressure: 0-80 psi
  • Water Temperature: 100-260°F (metric version available: 40-120°C)
  • Fuel Level: Readings from E, 1/4, 1/2, 3/4, to F
  • Voltmeter: 9-17 VDC

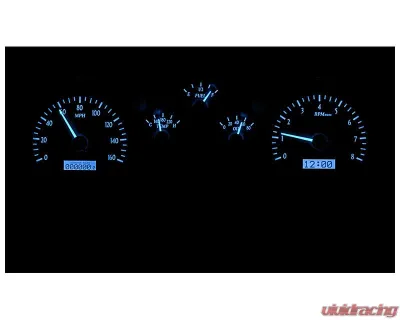

  • Lighting: The backlit tech here is a lifesaver, allowing you to quickly glance at the important stuff when you're on the go.
• Digital Message Centers:
  • Standard Displays:
    • Odometer (one-time user settable, million-mile capability)
    • Dual (A/B) Trip Meter (0-9,999.9)
    • Clock (12-hour format)
  • Performance Meters:
    • 0-60 MPH Timer
    • 1/4 mile time and end speed (trap speed)
    • High speed and high RPM recall
  • Gauges:
    • Speedometer (0-255 MPH/km/h)
    • Tachometer (0-9,900 RPM)
    • Oil Pressure (0-100 psi in 1 psi increments)
    • Water Temperature (100-300°F/40-150°C in 1°F/°C increments)
    • Voltmeter (9-17 VDC)
    • Fuel Level (0-99% full)
  • Lighting:
    • Auto-contrasting LCD for optimal visibility, even in bright sunlight.
    • LED backlighting at night to keep everything looking sharp.
• Built-in Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/Engaged when equipped)
  • Gear Position (requires optional GSS-3000 sensor)
  • 4x4 (when equipped)
  • Wait to Start (when equipped)
• Included Sensors:
  • Water Temperature: 1/8" NPT, ground-isolated sensor with a 10 ft harness.
  • Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
  • Cable Driven Speed Sensor/Generator: Replaces Ford/GM style speedometer cables with a 10 ft harness. Needs about 5" clearance between the cable drive output and anything else. If you need more room, grab part #130011 (sold separately) to relocate the pulse generator.
  • Bushings: Comes with a variety of NPT bushings (1/8" to 1/4", 3/8", and 1/2") as well as 12mm and 16mm x 1.5 threads.
  • Control Box Dimensions: 5.5" x 3.5" x 1"
• Calibration:
  • Pushbutton: Easy to program and operate with just a button press. Mount the included buttons where you can easily reach them, and use them to calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. Once you're set up, these buttons give you access to all the info in the Digital Message Centers.

Fitment: This kit is made specifically for the Chevrolet Camaro from 1982 to 1989.
