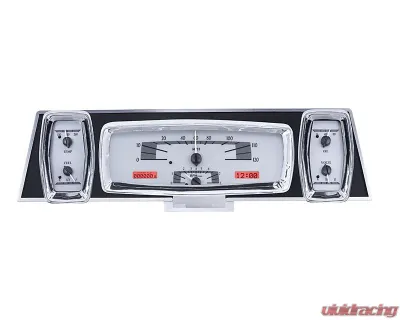

If you're into classic Lincolns, you probably know that the 1961-63 models are something special. They’ve got that big, bold presence and a touch of luxury that just screams class. If you’re looking to upgrade your ride’s instrumentation, this direct-fit analog instrument system is a game changer. Sure, you’ll need to make a few tweaks to the stock instrument cluster, but trust me, it’s worth it. This setup fills those three rectangular gauge bezels with six sleek needles and dual LCD message centers that really pop.

You’ve got options with the face styling too—choose between Black or Silver Alloy to match your Lincoln’s vibe. And let’s be real: it’s not just about what your Lincoln can do for you; it’s about what you can do for your Lincoln. This system is designed to elevate your driving experience.

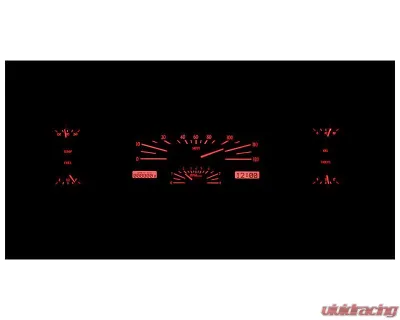

What sets the MHX Series apart from the old-school gauges? For starters, fully lit needles and backlit faces make it easy to read everything at a glance, even in low light. The high-visibility LCD message centers are a nice touch as well. But it’s not just about looks; this thing is packed with tech. We’re talking micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can rely on. Plus, you can customize the display feedback to suit your style. And let’s not forget that unbeatable limited lifetime warranty—Dakota Digital stands behind their products, and it shows.

Now, a heads up: this setup does require some permanent modification to your stock instrument cluster to fit everything in. Make sure to check out the installation manual for the nitty-gritty details.

Specifications:

Analog Gauges

• Speedometer: 0 - 120 MPH (there’s a metric version too, if you need it, going up to 195 km/h)
• Tachometer: Ranges from 0 to 8,000 RPM
• Oil Pressure: 0-80 psi
• Water Temperature: 100-260°F (or 40-120°C for the metric folks)
• Fuel Level: E, 1/4, 1/2, 3/4, F markings
• Voltmeter: 9-17 VDC
• Lighting: LED backlighting ensures everything is visible, even in the darkest conditions.

Digital Message Centers

• Standard Displays:
  • Odometer (one-time user settable, million-mile capability)
  • Dual Trip Meter (0-9,999.9)
  • Clock (12-hour format)
• Performance Meters:
  • 0-60 MPH Timer
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
• Gauges:
  • Speedometer (0-255 MPH/km/h)
  • Tachometer (0-9,900 RPM)
  • Oil Pressure (0-100 psi displayed in 1 psi increments)
  • Water Temperature (100-300°F/40-150°C displayed in 1°F/C increments)
  • Voltmeter (9-17 VDC)
  • Fuel Level (0-99% full)
• Lighting:
  • Auto-contrasting LCD display for bright sunlight visibility.
  • LED backlit for nighttime use.

Built-in Indicators

• Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (when equipped)
  • Gear Position (optional sensor required)
  • 4 x 4 (when equipped)
  • Wait to Start (when equipped)
• Note: Not all OEM indicator functions will be replaced. If you want more indicators, consider repurposing any unused ones.

Included Sensors

• Water Temperature: Comes with a 1/8" NPT, ground-isolated sensor and a 10 ft harness.
• Oil Pressure: 1/8" NPT solid-state sensor with a 10 ft harness.
• Cable Driven Speed Sensor/Generator: Replaces Ford and GM style speedometer cables with a 10 ft harness. Make sure you’ve got about 5 inches of clearance for installation.
• Bushings: Includes various bushings for easy installation.
• Control Box Dimensions: 5.5" x 3.5" x 1"

Calibration

• Pushbutton: Super easy to use. Just mount the included pushbuttons in a handy spot to calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. These buttons also give you access to all the cool info in the Digital Message Centers.

Fitment:

• Lincoln Continental 1961-1963

So if you’re ready to take your classic Lincoln to the next level, this MHX Series system is definitely worth considering. It’s a blend of modern tech and classic style that will make your ride stand out.
