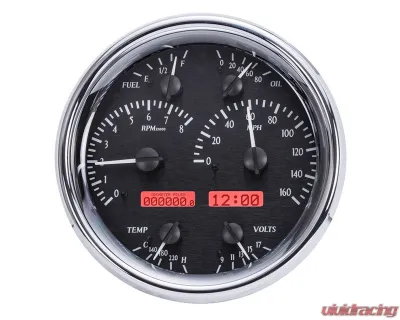

Transform Your Dashboard with the Dakota Digital MHX-1019-K-R Gauge

If you’re looking to upgrade your dashboard and bring a modern touch to your classic ride, the Dakota Digital MHX-1019-K-R gauge is an excellent choice. This sleek, all-in-one gauge features a 7" diameter design that fits perfectly into a 6.75" hole, making installation a breeze. The chromed billet aluminum housing adds a stylish flair that complements any interior, while ensuring you have enough depth—about 2 inches behind the dash—for a seamless fit.

Features That Matter

The VHX Series, including the MHX-1019-K-R, stands out from traditional gauges with its fully lit needles and backlit faces. You’ll appreciate the high visibility of the LCD message center, which keeps you informed at a glance. Under the hood, this gauge is powered by micro-controlled precision stepper motors and solid-state sensors, providing you with unmatched accuracy and reliability. Plus, the customizable display feedback allows you to tailor the gauge to your preferences. And with Dakota Digital's limited lifetime warranty, you can trust in the quality of your investment.

Specifications

• Analog Gauges:
  • Speedometer: 0 - 160 MPH (optional metric version 0-255 km/h)
  • Tachometer: 0 - 8,000 RPM
  • Oil Pressure: 0 - 80 psi
  • Water Temperature: 100 - 260°F (optional metric version 40-120°C)
  • Fuel Level: E, 1/4, 1/2, 3/4, F
  • Voltmeter: 9 - 17 VDC
• Digital Message Centers:
  • Standard Displays:
    • Odometer (One-time user settable, Million Mile)
    • Dual Trip Meter (0 - 9,999.9)
    • Clock (12 hour)
  • Performance Meters:
    • 0 - 60 MPH Timer
    • 1/4 mile time and end speed (trap speed)
    • High-speed recall
    • High RPM recall
  • Gauges:
    • Speedometer (0 - 255 MPH/km/h)
    • Tachometer (0 - 9,900 RPM)
    • Oil Pressure (0 - 100 psi)
    • Water Temperature (100 - 300°F)
    • Voltmeter (9 - 17 VDC)
    • Fuel Level (0 - 99% full)
• Built-in Indicators:
  • Turn Signals (Left/Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control
  • Gear Position (Optional sensor required)

Included Sensors

• Water Temperature: 1/8" NPT sensor with a 10 ft harness
• Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
• Cable Driven Speed Sensor: Replaces GM-style speedometer cables with a 10 ft harness
• Bushings: Includes various NPT bushings for installation

Calibration Made Easy

Programming your Dakota Digital gauge is straightforward with the included push buttons. These buttons allow you to calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge. Once set up, they also provide access to the extensive information in the Digital Message Centers.

Customer Feedback

“I installed the MHX-1019-K-R in my 1969 Camaro, and it transformed my dashboard. The visibility is top-notch, even in bright sunlight, and the installation was straightforward. The performance data is a game-changer for track days!” - Camaro Owner

Upgrade your ride's instrumentation with the Dakota Digital MHX-1019-K-R gauge and experience the perfect blend of style, functionality, and advanced technology!
