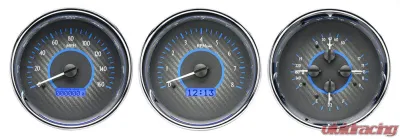

If you’re looking to upgrade your dashboard, the MHX-1020 System is worth checking out. This setup features three round gauges, each with a cutout diameter of 5 inches, and a total diameter of 5.4 inches. It's a solid choice for anyone who wants a modern look while still getting the essentials.

What really sets the MHX Series apart from the old-school gauges is how it combines style and functionality. You’ve got fully lit needles and backlit faces that make everything easy to read, even in bright sunlight. The LCD message centers are super clear and give you all the info you need at a glance. Plus, it’s equipped with micro-controlled precision stepper motors and solid-state sensors, which means you’re getting top-notch accuracy. And hey, Dakota Digital backs this with a lifetime warranty, so you know they stand by their work.

All of this is crafted right in Sioux Falls, South Dakota, so you’re supporting local craftsmanship while getting a product that’s really changed the game in the instrumentation world.

Specifications:

• Analog Gauges:

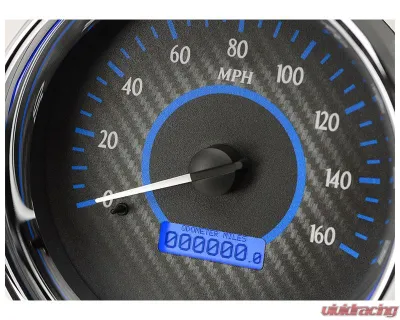

  • Speedometer: Ranges from 0 to 160 MPH (or 0 to 255 km/h if you prefer metric).
  • Tachometer: Goes from 0 to 8,000 RPM.
  • Oil Pressure: Measures from 0 to 80 psi.
  • Water Temperature: Reads from 100 to 260°F (or 40 to 120°C for metric).
  • Fuel Level: Displays E, 1/4, 1/2, 3/4, and F.
  • Voltmeter: Covers 9 to 17 VDC.

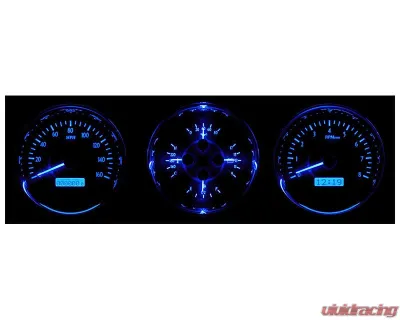

  • Lighting: The LED backlighting is a game-changer, lighting up everything you need to see without any glare.
• Digital Message Centers:
  • Standard Displays:
    • Odometer that can be set once and tracks up to a million miles.
    • Dual trip meters (A/B) that can track up to 9,999.9 miles.
    • 12-hour clock.
  • Performance Meters:
    • 0-60 MPH timer (or 0-100 km/h).
    • Quarter-mile timer.
    • Quarter-mile trap speed.
    • High-speed recall.
    • High RPM recall.
  • Gauges:
    • Speedometer: 0-255 MPH/km/h.
    • Tachometer: 0-9,900 RPM.
    • Oil Pressure: 0-100 psi in 1 psi increments.
    • Water Temperature: 100-300°F/40-150°C in 1°F/C increments.
    • Voltmeter: 9-17 VDC.
    • Fuel Level: 0-99% full.
  • Lighting:
    • Auto-contrasting LCD display that shines in bright sunlight.
    • LED backlit for nighttime visibility.
• Built-in Indicators:
  • Turn signals (left/right).
  • High beam indicator.
  • Check engine light.
  • Parking brake indicator.
  • Cruise control status.
  • Gear position (requires optional GSS-3000 sensor).
  • 4x4 status (if equipped).
  • Wait to start light (if equipped).
• Included Sensors:
  • Water Temperature: 1/8" NPT sensor with a 10 ft harness.
  • Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness.
  • Cable Driven Speed Sensor: Replaces GM-style speedometer cables with a 10 ft harness. Needs about 5" clearance for proper installation.
  • Bushings: Comes with a variety of bushings for easy installation.
  • Control Box Dimensions: 5.5" x 3.5" x 1".
• Calibration:

  Setting up the MHX-1020 is straightforward. You’ll get push buttons to calibrate your speedometer and set your cylinder count. Once everything’s configured, those same buttons let you dive into the digital message centers for all sorts of info. Just mount them somewhere handy, and you’re good to go!

So, if you’re ready to give your ride a fresh look with some serious functionality, the MHX-1020-C-B Dakota Digital system is your ticket. It’s not just about the looks; it’s about getting the info you need when you need it, all wrapped up in a stylish package.
