Dakota Digital MHX-1020-S-R Instrumentation System

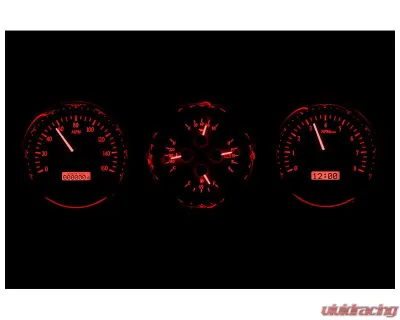

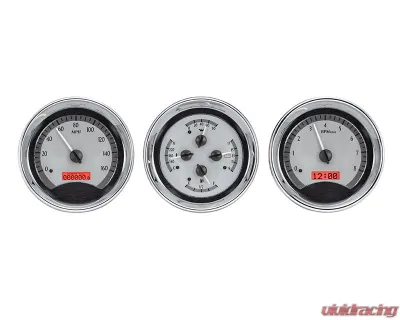

Elevate your driving experience with the Dakota Digital MHX-1020-S-R Instrumentation System, a perfect fit for your classic ride or modern muscle car. This system features three individual round gauges, each boasting a 5" cutout diameter (5.4" total diameter), ensuring that your dashboard not only looks sleek but also performs at the highest level.

Features That Stand Out

The MHX Series redefines what you expect from automotive instrumentation. With fully lit needles and backlit faces, visibility is never an issue, day or night. The highly visible LCD message center provides essential information at a glance, making it easy to monitor your vehicle's performance. But it’s what's under the hood that truly sets this system apart:

• Micro-controlled precision stepper motors for accurate readings
• Solid-state sensors that deliver unparalleled accuracy
• User-customizable display feedback to suit your preferences
• Limited lifetime warranty, a hallmark of Dakota Digital reliability

Designed and manufactured in Sioux Falls, South Dakota, the MHX Series is a game-changer in the instrumentation industry, combining cutting-edge technology with a classic aesthetic.

Specifications

Analog Gauges

• Speedometer: 0 - 160 MPH (optional metric version 0-255 km/h)
• Tachometer: 0 - 8,000 RPM
• Oil Pressure: 0 - 80 psi
• Water Temperature: 100 - 260°F (optional metric version 40-120°C)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9 - 17 VDC

Digital Message Centers

• Standard Displays:
  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0-9,999.9)
  • Clock (12 hour)
• Performance Meters:
  • 0-60 MPH Timer (0-100 km/h)
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High-speed recall
  • High RPM recall

Built-in Indicators

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/On & Engaged when vehicle is equipped)
• Gear Position (Optional GSS-3000 sensor required)
• 4 x 4 (When vehicle is equipped)
• Wait to Start (When a vehicle is equipped)

Included Sensors

• Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
• Oil Pressure: 1/8" NPT solid state sensor with a 10 ft harness
• Cable Driven Speed Sensor/Generator: Replaces GM-style speedometer cables with a 10 ft harness. Requires approximately 5" clearance extending between the cable drive output and any obstruction.
• Bushings: Includes 1/8" to 1/4", 3/8", and 1/2" NPT bushings, plus 12mm and 16mm x 1.5 thread options.

Calibration Made Easy

Setting up your MHX-1020-S-R is straightforward with the included push buttons. These allow you to calibrate your speedometer, set the cylinder count, and adjust the fuel level gauge with ease. Once configured, these buttons also provide access to a wealth of information from the Digital Message Centers.

Customer Feedback

“Installed the MHX-1020-S-R on my 1970 Chevelle, and it transformed my dashboard! The clarity of the gauges is amazing, and the customizable options let me set it up just how I like. Highly recommend it for anyone looking to upgrade their classic ride!”

Whether you're a classic car enthusiast or simply want to modernize your vehicle's instrumentation, the Dakota Digital MHX-1020-S-R is the perfect upgrade. Experience the difference today!
