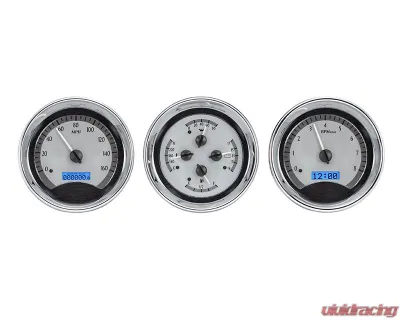

If you're looking to upgrade your ride's dashboard, the MHX-1020 System is where it’s at. This setup features three round gauges, each with a 5-inch cutout diameter—so they fit nicely in your classic or custom build without looking out of place. With a total diameter of 5.4 inches, they’re big enough to catch your eye but not so huge that they dominate the interior.

What really sets the MHX Series apart from the old-school gauges is the attention to detail. The fully lit needles and backlit faces mean you can read everything at a glance, day or night. And let’s talk about that LCD message center—it's super visible, making it easy to keep an eye on what matters while you're out on the road. But it’s not just about looks; this system is packed with tech that makes a real difference. We’re talking micro-controlled precision stepper motors and solid-state sensors that deliver accuracy you can trust. Plus, you can customize the display feedback to suit your style, which is a nice touch.

Engineered and built right in Sioux Falls, South Dakota, this system has really shaken things up in the instrumentation world. You know you're getting quality when it comes with an unbeatable limited lifetime warranty, something that Dakota Digital is known for.

Specifications

• Speedometer: Tracks speeds from 0 to 160 MPH (and there's a metric version that goes up to 255 km/h if that's your jam).
• Tachometer: Ranges from 0 to 8,000 RPM, so you can really get a feel for your engine's performance.
• Oil Pressure: Monitors from 0 to 80 psi—keeping you informed about your engine's health.
• Water Temperature: Keeps tabs on temps from 100 to 260°F (or 40 to 120°C if you prefer metrics).
• Fuel Level: Displays levels from empty to full, so you'll never be caught off guard.
• Voltmeter: Ranges from 9 to 17 VDC, giving you a clear picture of your electrical system.
• Lighting: The backlit technology is a game changer, ensuring you can see all the important details when you need them.

Digital Message Centers

• Standard Displays: Includes an odometer that can be set once and tracks up to a million miles, dual trip meters, and a clock.
• Performance Meters: Time your 0-60 MPH runs and 1/4 mile times to see how your modifications stack up.
• Gauges: Displays for speed, RPM, oil pressure, water temperature, voltage, and fuel level are all easy to read.
• Lighting: The auto-contrasting LCD display ensures you can see it even in bright sunlight, and it lights up at night to match the rest of your setup.

Built-in Indicators

• Indicators: Includes turn signals, high beam, check engine, parking brake, and even cruise control indicators if your vehicle has them.
• Note: Not all OEM indicator functions are replaced, so if you need more, consider repurposing any unused indicators.

Included Sensors

• Water Temperature: Comes with a 1/8" NPT sensor and a 10 ft harness.
• Oil Pressure: Includes a solid-state sensor with a 10 ft harness, ensuring reliability.
• Cable Driven Speed Sensor: This replaces GM-style speedometer cables and requires about 5 inches of clearance—just something to keep in mind.
• Bushings: Each kit comes with various bushings to fit your needs.
• Control Box Dimensions: It measures 5.5" x 3.5" x 1", making it compact enough to fit in your setup without hassle.

Calibration

• Push Button: Calibration is a breeze with the included push buttons. You can set your speedometer, cylinder count, and fuel gauge with ease. Plus, those same buttons let you access all the cool info in the Digital Message Centers.

So, if you're looking to give your dashboard a serious upgrade, the MHX-1020-S-B Dakota Digital 5.4" Triple Round Silver Alloy MHX System is worth checking out. It's got the features, the tech, and the style to make your ride stand out.
