Deatschwerks VB40aX1 Voltage Booster - 9-4-00-VB40aX1

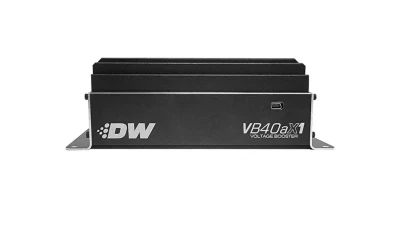

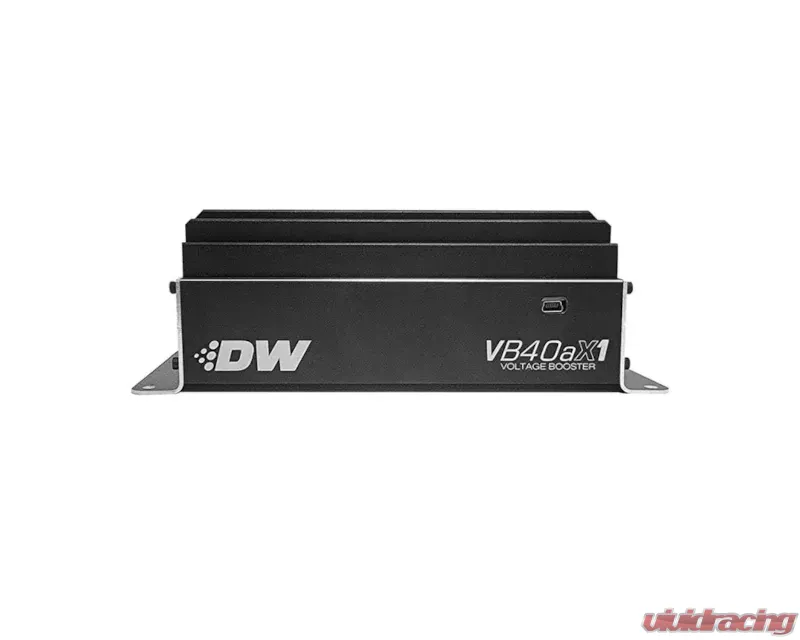

Deatschwerks VB40aX1 Voltage Booster - 9-4-00-VB40aX1 - Image 3 Deatschwerks VB40aX1 Voltage Booster - 9-4-00-VB40aX1 - Image 2 Deatschwerks VB40aX1 Voltage Booster - 9-4-00-VB40aX1 - Image 3

Deatschwerks VB40aX1 Voltage Booster

The Deatschwerks VB40aX1 is a cutting-edge voltage booster designed specifically for fuel pump applications. This unit elevates fuel pump performance by providing programmable voltage enhancement, making it a vital component for automotive enthusiasts looking to optimize their fuel delivery systems.

Key Features

  • Single fuel pump booster configuration (VB40aX1)
  • Standard operation mode provides output voltage up to 20 volts
  • Brushless mode allows for voltage output of up to 26 volts

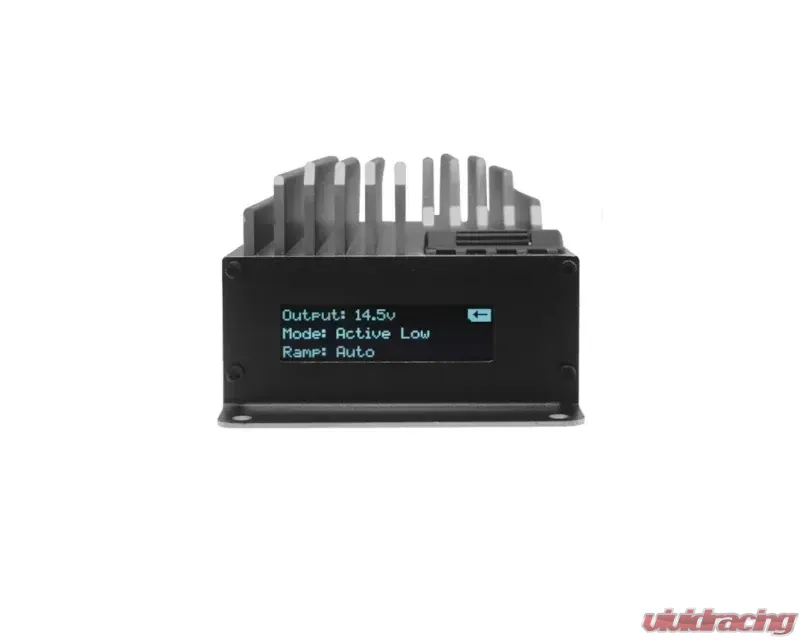

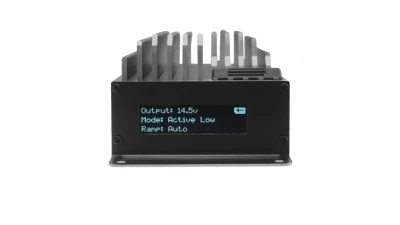

  • Easy programming through a roller wheel and digital OLED display
  • User-defined passcode protection for added security

Specifications

  • Weight: 2.5 lbs (1120 g)
  • Housing Material: Anodized Aluminum Case for durability
  • Display: High-resolution OLED Screen
  • Input Voltage: 6.0 - 14.5 Volts
  • Output Voltage (Standard Mode): 14.5 - 20 Volts
  • Output Voltage (Brushless Mode): 14.5 - 26 Volts
  • Maximum Current: 40 Amps, with flow increase capped at this limit
  • Voltage Settings: Adjustable to 14.5, 18, 20, 22, and 26 Volts
  • Trigger Modes: Active Low and Always On for flexible operation
  • Ramp Rates: Configurable to Auto, 1.5, 1.0, 0.5 seconds, or Instant
  • Compatible with both brushed and brushless fuel pumps
  • Wiring:
    • VB40a Wiring: 24" (610mm) 10 AWG
    • Output Wiring: 36" (915mm) 10 AWG
    • Trigger Wiring: 36" (915mm) 14 AWG
  • Fuse: ATO 50 Amp for reliable protection
  • Power Connections:
    • Red Wire: 12V Key On Power
    • Black Wire: Chassis Ground
    • White Wire: Switched Ground Trigger
    • Blue Wire: Power to Fuel Pump

The VB40aX1 is engineered to enhance fuel pump efficiency, making it an essential upgrade for those pushing their performance boundaries. With its advanced digital features and robust construction, this voltage booster stands out in the aftermarket landscape.
