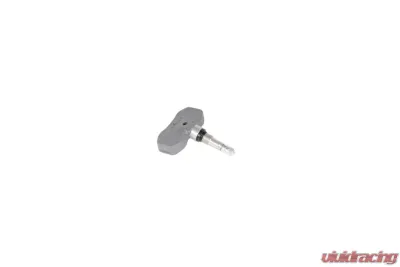

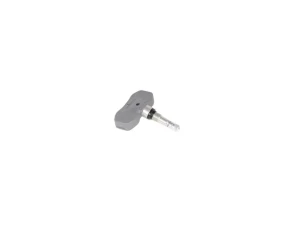

AC Delco Tire Pressure Monitoring System (TPMS) Sensor

$139.76

As low as $13/mo^* with Affirm. Financing Options

Hurry Low Stock

Add to Wishlist

Model#25758220
ManufacturerAC Delco

Have a Question?

Live Chat (480) 966 3040

BEST PRICES, AMAZING SERVICE

ACDelco GM Original Equipment Tire Pressure Monitoring Sensors (TPMS) are battery powered sensors located in the tire that monitor the vehicle's tire pressure and warn the driver when pressure falls more than 25% below the manufacturer's recommendations (normally through a slow pressure loss), and are GM-recommended replacements for your vehicle's original components. The sensor is connected with the valve stem and, by way of Radio Frequency (RF) technology, sends pressure updates to the vehicle's on-board computer. Tire pressure is displayed on the vehicle's Driver Information Center (DIC) or, when low, a warning light may be illuminated to warn the driver. U.S. Federal Regulations require that new cars and light trucks be equipped with TPMS starting in 2008. These original equipment tire pressure monitoring sensors have bn manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors.

Features:

Battery is made to last up to 10 years of normal use
Designed to communicate perfectly with your GM vehicle's TPMS Module
Enhance safety of your vehicle
GM-recommended replacement part for your GM vehicle's original factory component
Offering the quality, reliability, and durability of GM OE
Manufactured to GM OE specification for fit, form, and function

Specifications:

Weight (lb): 0.08
Height (in): 1.4
Valve Length: 1.6
Width (in): 3
Length (in): 3.6
Valve Length: 40.7
Maximum Pressure Reading: 51 PSI
Material: Aluminum
Power Source: Battery
Monitor Type: direct
Mounting Hardware Included: No
Activation Type: Scan Tool
Valve Color: Silver
Universal Or Specific Fit: Specific
Mounting Method: Valve Stem Nut
Meets or Exceeds Original Equipment Manufacture Specifications: Yes
Real Time Pressure Signal Transmission: Yes
Gasket Or Seal Included: Yes
Programming Required: Yes

Fitment:

Cadillac XLR 2004-2009
Cadillac STS 2005-2008
Cadillac XLR 2005-2009
Chevrolet Corvette 2005-2009
Cadillac STS 2006-2008
Cadillac XLR 2006-2009
Chevrolet Corvette 2006-2009
Cadillac STS 2007-2008
Cadillac XLR 2007-2009
Chevrolet Corvette 2007-2009
Cadillac STS 2008-2008
Cadillac XLR 2008-2009
Chevrolet Corvette 2008-2009
Cadillac XLR 2009-2009
Chevrolet Corvette 2009-2009

Other Part Numbers:
AC Delco #25758220

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Make Vehicle	Model	Year
2005-2008 Cadillac STS	STS	2005-2008
2004-2009 Cadillac XLR	XLR	2004-2009
2005-2009 Chevrolet Corvette	Corvette	2005-2009

AC Delco Banner

Who is AC Delco?

AC Delco is a world-renowned company and is considered a premier supplier of Original Equipment parts. The company’s roots can be traced back to more than 100 years. Today, AC Delco has established itself as the global leader when it comes to automotive replacement parts.

Wide Range of Products

AC Delco has one of the most comprehensive parts list available in the market. It has over 90,000 auto parts across 37 product lines and is distributed all over the globe. Over the years, they have built a reputation as the leading source of high-quality auto parts. They have grown into one of the biggest manufacturers and caters to different industries which include the marine and industrial equipment sector.

The company offers various parts such as spark plugs, batteries, oil filters, wiper blades, air filters, and brakes. They also have repair components for radiators, alternators, chassis and vehicle cooling systems.

The Best Only Trusts the Bests

AC Delco has a long-standing partnership with General Motors and has since provided them with top-quality and reliable parts.

Purchase AC Delco Products at Vivid Racing

AC Delco has always been a part of the automotive industry. They are considered as one of the pillars and have played a vital role in helping shape the way we know automobiles today. If you want parts that have passed the test of time, then this is the brand for you. They have been manufacturing parts way before most of us are even born and have always kept that tradition of creating products you can rely on. To know more about AC Delco, visit Vivid Racing and check out their list of products that would fit your needs.

A WHOLE LOT OF PART PROTECTION

Most GM OE and Gold (Professional) lines are covered under a 24-month/unlimited-mile limited warranty and our Silver (Advantage) line limited warranties are 12 months/unlimited miles. Click Here for full warranty details.
