  See more parts for Chevrolet Camaro
Select the year of your Chevrolet Camaro:

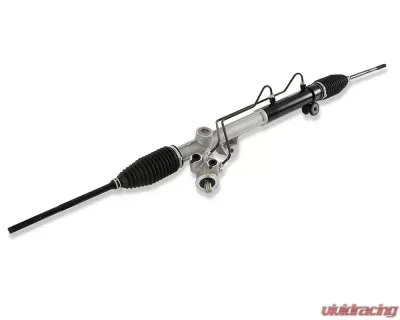

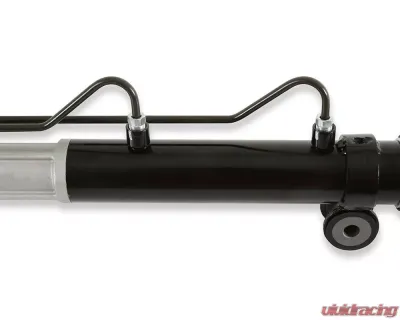

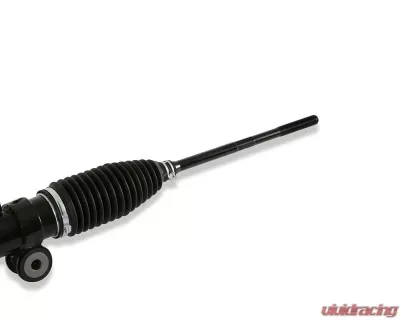

Detroit Speed Fast Ratio Detroit Tuned Power Rack and Pinion - 090224DS
Detroit Speed Fast Ratio Detroit Tuned Power Rack and Pinion - 090224DS - Image 5 Detroit Speed Fast Ratio Detroit Tuned Power Rack and Pinion - 090224DS - Image 2 Detroit Speed Fast Ratio Detroit Tuned Power Rack and Pinion - 090224DS - Image 3 Detroit Speed Fast Ratio Detroit Tuned Power Rack and Pinion - 090224DS - Image 4 Detroit Speed Fast Ratio Detroit Tuned Power Rack and Pinion - 090224DS - Image 5
Detroit Speed’s 1998-2002 Camaro/Firebird power rack and pinion uses “Detroit Tuned” valving to provide an exceptional modern performance feel on the street and on the track. It is a direct bolt-in, factory-style fast-ratio power steering rack with 2-1/4 turns lock-to-lock. Steering Rack can be retrofit in 1993-1999 Camaro/Firebird with LT1 (gen II small block) or V6 vehicles – for upgrade over factory 2.63 turns lock-to-lock.

This factory-style fast ratio power steering rack & pinion fits 1998-2002 Camaro / Firebird (with FE2, FE4, and FE7 suspension packages). "Detroit Tuned" valving for an exceptional modern performance feel for street or racing applications. Quick ratio with 2-1/4 turns lock-to-lock. This rack is built with all new components and undergoes a rigorous quality check and performance testing before shipment. Easy bolt-in installation on 1998-2002 Camaro/Firebird. Steering rack can be retrofit in 1993-1999 vehicles that came from the factory with an LT1 (gen III small block Chevy) or V6 engines - for upgrade over stock factory OEM 2.63 turns lock-to-lock steering ratio (must be used with factory LS1 steering shaft).

Features:
  • Inner Tie Rod Ball to Ball Width 728mm (28.7")
  • Overall Width 1338mm (52.7")
  • Linear Rack Travel 120mm (4.7")
  • Number of Turns Lock to Lock 2-1/4
  • Mounting Bolt Span 350.5mm (13.8")
  • Mounting Bolt Size 12mm
  • Outer Tie Rod Thread Length 62mm (2.4")
  • Outer Tie Rod Thread Size M14-1.5
  • Input Shaft OEM Asymmetrical 15mm DD
  • Recommended Pump Flow Rate 1.85 gal/min
  • Maximum Peak System Pressure 1232 psi
  • High-Pressure Fitting Thread M18-1.5
  • Low-Pressure Fitting Thread M16-1.5
  • Factory style fast ratio power steering rack & pinion – fits 1998-2002 Chevrolet Camaro and Pontiac Firebird
  • “Detroit Tuned” valving for an exceptional modern performance feel for street or racing applications
  • Fast-ratio with 2-1/4 turns lock-to-lock
  • “New” power steering rack – built with all new components
  • Easy direct-fit bolt-in installation for 1998-2002 with FE2, FE4, and FE7 suspension packages
  • Can be retrofit into 1993-1997 LT1 (gen II small block Chevy) and 1993-1999 V6 applications with the use of
  • factory LS1 steering shaft (upgrade from standard OEM steering ratio 2.63 turns lock-to-lock)
  • Every rack undergoes a rigorous quality check and is performance tested before being packaged
  • The pinion tower is angled to fits LS-powered vehicles
  • Use with factory power steering hoses or Detroit Speed PN # 090206SDS & 090206LDS adapter fittings and
  • -6 AN power steering hoses
Install Instructions:Fitment:
  • Chevrolet Camaro 1998-2002
  • Pontiac Firebird 1998-2002
Note:
  • This steering rack can be retrofit into 1993-1999 V6, and 1993-1997 LT1 (gen II small block) applications using the factory LS1 Steering Shaft (for an upgrade over the OEM steering ratio 2.63 turn lock-to-lock).
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle Make/Model
Chevrolet Camaro 1998-2002 Z28
Chevrolet Camaro 1998-2002 Z28 SS
Chevrolet Camaro 1998-2002 Base
Chevrolet Camaro 1998 Lujo
Pontiac Firebird 1998-2002 Formula
Pontiac Firebird 1998-2002 Trans Am
Pontiac Firebird 1998-2002 Base

Detroit Speed Banner

Who Is Detroit Speed?

Cars are initially designed to transport people faster from point A to B. But as the years go by, people started tinkering on their cars to make it quicker and perform better. Over the years the aftermarket industry has boomed and offered tons of performance products to the automotive industry. Detroit Speed is one of the few companies that offer the best parts in the market.

Detroit Speed is an aftermarket company that specializes in providing high-performance parts for various American cars. They offer different suspension and differential parts that are an upgrade over the stock factory unit. Today, they have become one of the favorite brands of many American car enthusiasts and tuners worldwide.

Quality Products

Each part that leaves its facility is a testament to how devoted the company is to manufacturing its products. They spend numerous hours developing and testing their components to ensure that everything performs the way it is designed. Over the years, they have developed innovative parts that adapt to the ever-changing trend of the automotive industry.

100% Made In The USA

All of Detroit Speed parts are manufactured in the USA. It allows them to create superior products that consistently meet the demands of their customers. With the help of their engineers and highly skilled fabricators, they are able to develop long-lasting and dependable products.

They also utilize the most advanced and latest technology in manufacturing their parts, such as CNC machines, hydroforming, and forging. By utilizing their experience and taking advantage of what modern technology has to offer, they are able to provide the best product.

Purchase Detroit Speed Products At Vivid Racing

If you are in the market for quality parts that would help bring your classic muscle car in the 21st century, then Detroit Speed is the brand for you. Their products are often used in various car shows, competitive racing, and various motorsport disciplines. It allows muscle cars to perform and handle like the modern vehicles of today. To know more about Detroit Speed, visit Vivid Racing and check out their list of products that fit your specific needs.

Detroit Speed, Inc. warrants its products to be free from defects in materials and workmanship for a period of two years (24 months). This warranty is extended only to the first purchaser of any product at retail and who has retained ownership of the vehicle on which the product was originally installed. This warranty does not include any labor or materials not furnished by the manufacturer or any shipping or towing charges. It also does not cover any product repaired or altered in any way, misuse, and/or misapplication of the product. All warranty replacement or repair privileges are void when a product is modified by anyone other than Detroit Speed, Inc.

A dated purchase receipt or invoice must be presented with all claims. If DATE CODING is removed from the product, the warranty is void. If the product is found to be defective, Detroit Speed will repair, replace or refund the purchase price at Detroit Speed’s sole discretion.

Detroit Speed will pay all normal ground shipping cost on replacement products when the products returned are found to be defective or unacceptable due to an error on the part of Detroit Speed, Inc. All products found by Detroit Speed to be non-defective will be returned to the customer.
