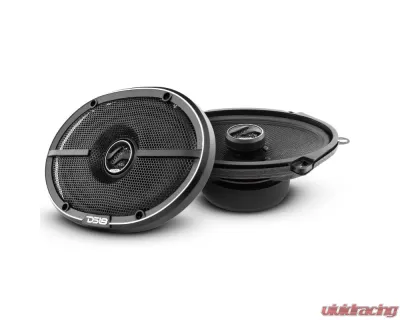

DS18 210 Watts 4-Ohm 5x7" 2-Way Coaxial Speakers with Kevlar Cone - ZXI-574
DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This 2 - way 5x7" takes 70w RMS and 210w Max watts and with a 91dB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. These speakers are an amazing choice for your average every day to extreme audiophile!

Features:
  • Highly durable and extremely loud design built for the average to extreme audio systems.
  • Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.
  • 2 - way design will bring a full range of frequencies to your ears and with great sound quality.
Technical Details
  • Nominal Diameter: 5x7”
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 70 Watts
  • MAX Power Handling: 210 Watts
  • Sensitivity (1w/1m): 91dB
  • Frequency Response: 40Hz-20KHz
  • Recommended HI Pass Crossover: 60Hz
  • Speaker Type: 2-Way
MOTOR
  • Voice Coil Diameter: 1” / 25.5mm
  • Voice Coil Former Material: KSV
  • Winding Material: EISV
  • Cone Material: Glass fiber
  • Surround Material: Rubber
  • Basket Material: Steel
  • Magnet Material: Barium Ferrite
  • Magnet Weight: 14.46 oz / 410g
TWEETER
  • Nominal Diameter: 1" / 25.4mm
  • Voice Coil Diameter: 0.8"/ ø20.4mm
  • Voice Coil Former Material: KSV
  • Winding Material: EISVM
  • Diaphragm Material: PEI
  • Magnet Material: Neodymium
  • Magnet Weight: 0.3 oz / 8.5g
THIELE & SMALL PARAMETERS
  • Equivalent Volume: 8.6L
  • Excursion (one way): 2.7mm
  • Free Air Resonance: 68Hz
  • Mechanical Factor: 7.04
  • Electrical Factor: 1.28
  • Total Factor: 1.08
  • Mechanical Mass: 16.1g
  • Mechanical Compliance: 258.7mm/N
  • BL Factor: 4.6
  • Voice Coil Inductance: 228mH
  • Cone Area: 153.5cm2
  • DC Resistance: 3.5 Ohm
  • Mechanical Mass w/o air: 14g
MEASUREMENTS
  • Overall Diameter: 5.55x7.60” / 141x193mm
  • Overall Depth: 3.07" / 78mm
  • Front Mount Baffle Cutout: 4.92x7.07”/ 125x179.5mm
  • Mounting Depth: 2.22” / 56.5mm
  • Motor Diameter: 3.70” / 94mm
Install Instructions:

Other Part Numbers:
DS18 #ZXI-574-FXVX
