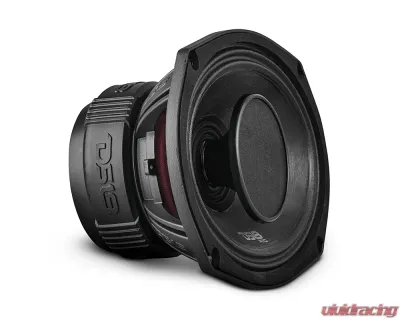

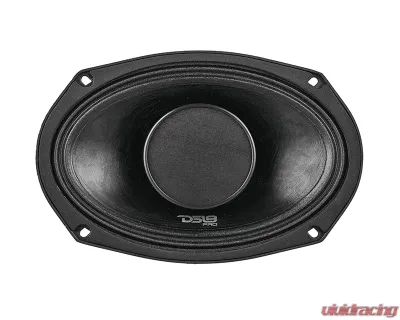

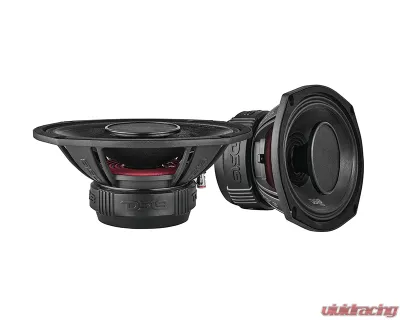

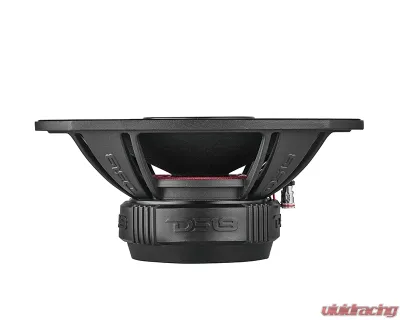

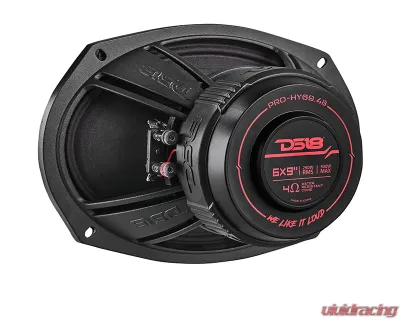

DS18 250 Watts RMS 4-Ohm Pro 6x9" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver - PRO-HY69.4B
DS18 250 Watts RMS 4-Ohm Pro 6x9" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver - PRO-HY69.4B - Image 5 DS18 250 Watts RMS 4-Ohm Pro 6x9" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver - PRO-HY69.4B - Image 2 DS18 250 Watts RMS 4-Ohm Pro 6x9" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver - PRO-HY69.4B - Image 3 DS18 250 Watts RMS 4-Ohm Pro 6x9" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver - PRO-HY69.4B - Image 4 DS18 250 Watts RMS 4-Ohm Pro 6x9" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver - PRO-HY69.4B - Image 5
The PRO-HY69.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 6x9" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume. The PRO-HY69.4B features a 1" compression driver horn, made with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound. With a maximum power handling of 500 watts and a sensitivity of 97 dB, this speaker is perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound. The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. The PRO-HY69.4B also has a nominal impedance of 4 ohms, a frequency response range of 50Hz-20KHz, and a recommended hi-pass crossover of 80Hz for improved audio performance and longevity, making it a great choice for a range of audio applications. The PRO-HY69.4B is an excellent choice for anyone seeking a powerful and versatile speaker for their sound system.

Features :
  • 6x9" Hybrid Coaxial Mid-Range w/Driver
  • RMS Power: 250 Watts(500 Watts Peak)
  • Impedance: 4 Ohm
  • Ferrite & Neodymium Magnets
  • Water Resistant IPX5
  • 97dB
Specifications :
  • Nominal Diameter : 6x9" / 152 x 228mm
  • Nominal Impedance : 4 Ohm
  • RMS Power Handling : 250W
  • MAX Power Handling : 500W
  • Sensitivity (1w/1m) : 97dB
  • Frequency Response : 50Hz - 20Khz
  • Recommended HI Pass Crossover : 80Hz
  • Number of ways : 2 ways
  • Pair or Single : Single
  • Grill Included : Yes
  • Woofer Specifications
    • Voice Coil Diameter : 1.5"/ 38.6mm
    • Voice Coil Former Material : Glass Fiber
    • Winding Material : CCAW
    • Cone Material : Water Resistant Paper (IPx5)
    • Surround Material : Cloth
    • Basket Material : Aluminum
    • Basket Color/Finish : Matte Black
    • Magnet Material : Ferrite
    • Magnet Weight : 27 Oz
    • Displacement Volume : 0.051L / 0.0018ft3
  • Thiele & Small Parameters
    • Equivalent Volume Vas : 14.84L / 0.52ft3
    • Excursion (one way) Xmax : 9.2mm
    • Free Air Resonance Fs : 87Hz
    • Mechanical Factor Qms : 3.629
    • Electrical Factor Qes : 0.661
    • Total Factor Qts : 0.559
    • Mechanical Mass Mms : 14.264g
    • Mechanical Compliance Cms : 0.236 mm/N
    • BL Factor BL : 6.135
    • Voice Coil Inductance Le : 4.22mH
    • Cone Area Sd : 210.48 Cm2
    • DC Resistance Re : 3.2 ohms
    • Mechanical Mass w/o air Mmd : 12.509g
  • Driver Specifications
    • Voice Coil Diameter : 1" / 25.4mm
    • Voice Coil Former Material : Kapton
    • Winding Material : CCAW
    • Diaphragm Material : Titanium
    • Magnet Material : Neodymium
    • Horn Diameter : 3.26" / 83mm
  • Speaker Measurement
    • Overall Diameter : 9.45 X 6.57" / 240 X 167mm
    • Overall Depth : 4.54" / 115.4mm
    • Front Mount Baffle Cutout : 8.74 X 5.98" / 222 X 152mm
    • Mounting Depth : 4.21" / 107 mm
    • Motor Diameter : 4.61" / 117mm
